X Series E70 X5 4.8i (N62TU) OFFRD
18 00 020
Removing and installing complete exhaust
system (N62TU)

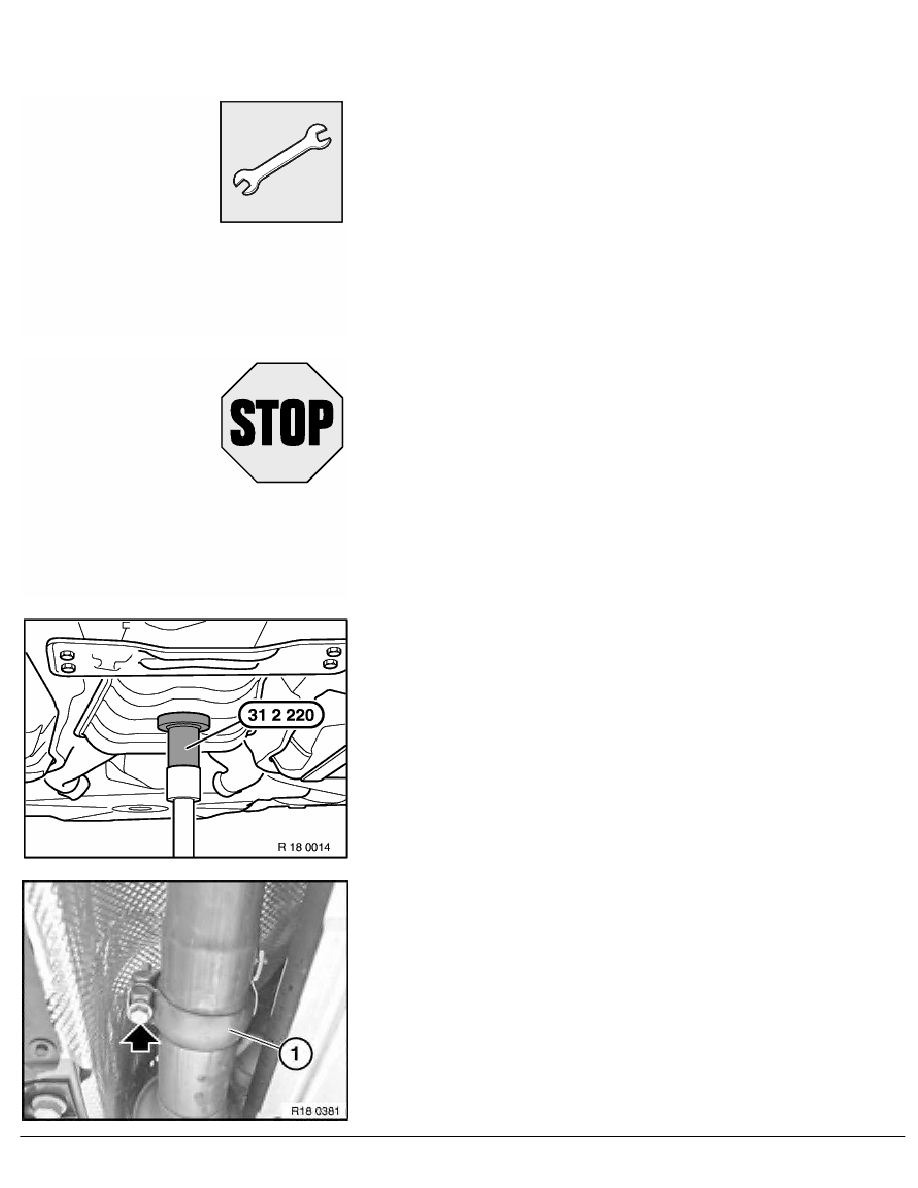

Special tools required:
•
31 2 220
Warning!
Scalding hazard!
Only perform this work after engine has cooled down.
Danger of injury!
Removal of the exhaust system must be carried out with the
assistance of a second person.
Support exhaust system with special tool 31 2 220 .
Note:
Texts refer to and illustrations show the left side. The procedure is
identical for the right side.
Unfasten screw connection.
Slacken ball band clamp (1) from exhaust pipe.
Installation:
•
Replace ball band clamps.
•
Apply a thin coating of copper past to contact surface
between ball and socket.
