X Series E83 X3 3.0i (M54) OFFRD
23 00 019
Removing and installing transmission (GS6-
37BZ)
Special tools required:
•
00 2 030
•
11 0 250
•
21 2 221
•
23 0 112
•
23 0 131
•
23 0 132
•
23 0 134
Important!
After completion of work, check transmission oil level.
Use only the approved gear oil.
Failure to comply with this requirement will result in serious
damage to the manual transmission.
Necessary preliminary tasks:
•
Disconnect battery.
•
Remove front underbody protection.
•
Remove complete exhaust system.
•
Remove heat shield.
•
Remove front propeller shaft at transfer box and tie to one
side.
Supporting engine and transmission:
-

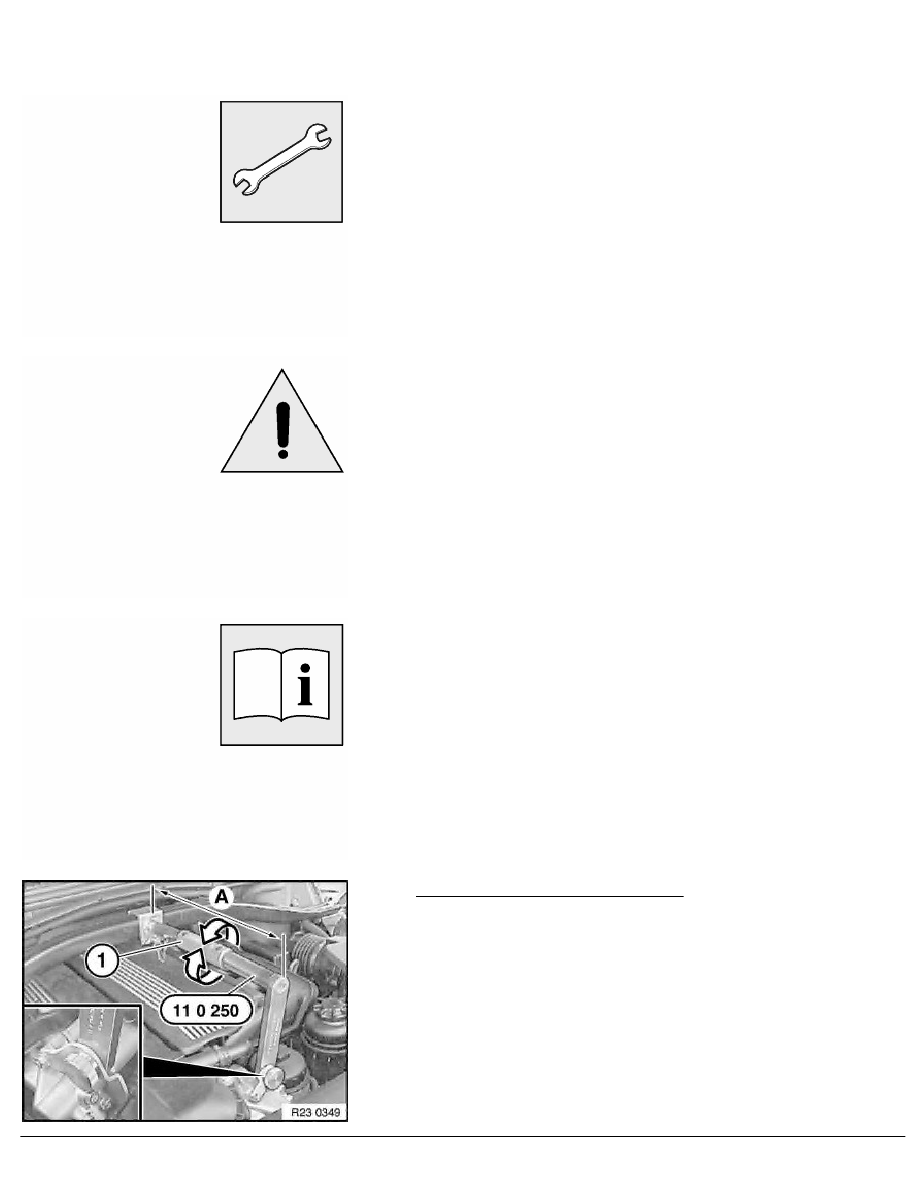

Install special tool 11 0 250 between dome cross-brace and
engine suspension eye and secure with dowel pin.
-
Pretension special tool with adjusting screw (1) to
measurement "A".
Engine secured in installation position.
Installation position, measurement "A" = approx. 36 cm.
