X Series E83 X3 3.0i (M54) OFFRD
-

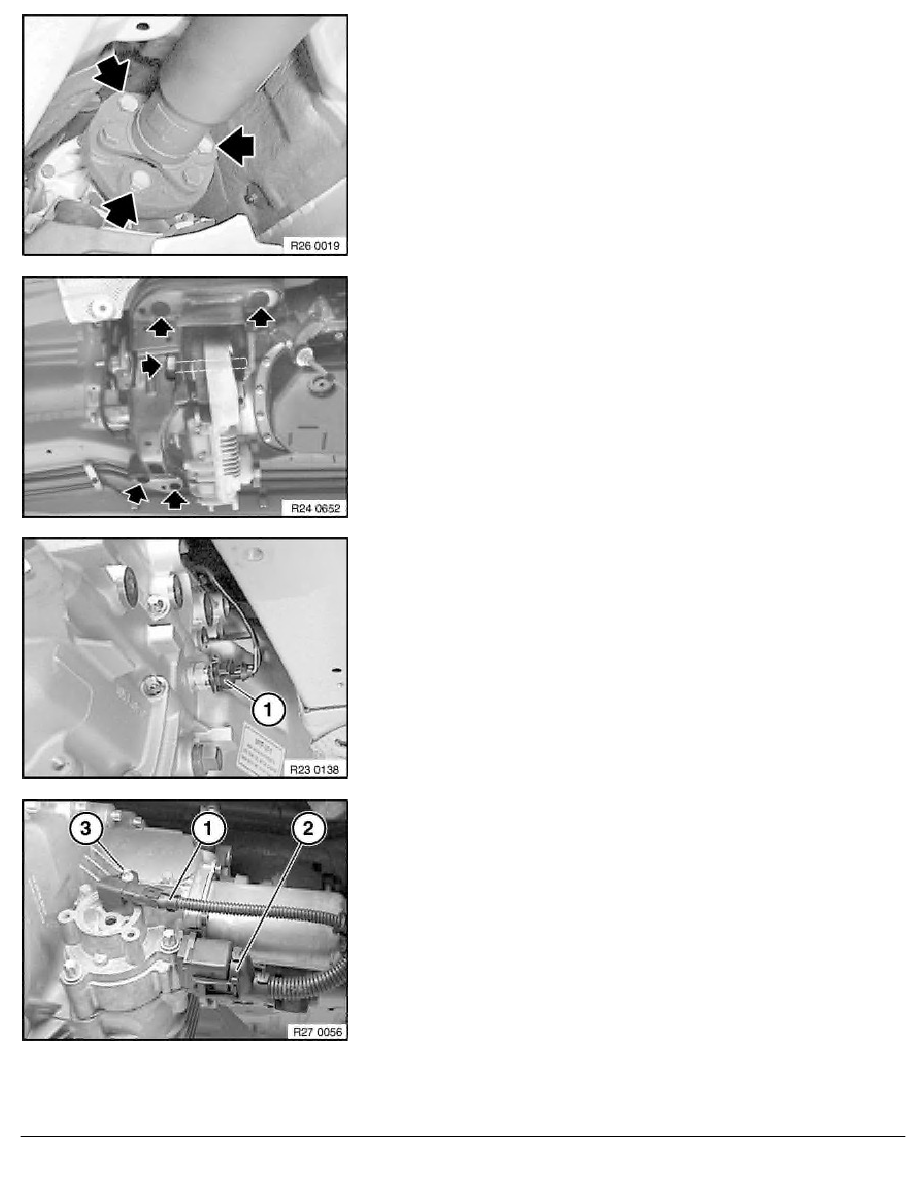

Remove propeller shaft from transmission.
-
Release center bearing.
-
Tie propeller shaft to one side.
Tasks are described in Removing propeller shaft.
Unfasten screws and remove transmission cross-member.
Tightening torque 22 32 4AZ/5AZ
.
Detach plug (1) from reversing light switch.
Release cable from mountings and tie to one side.
Detach plugs (1) and (2) from servomotor.
RA Removing and installing transmission (GS6-37BZ)
