X Series E83 X3 3.0i (M54) OFFRD

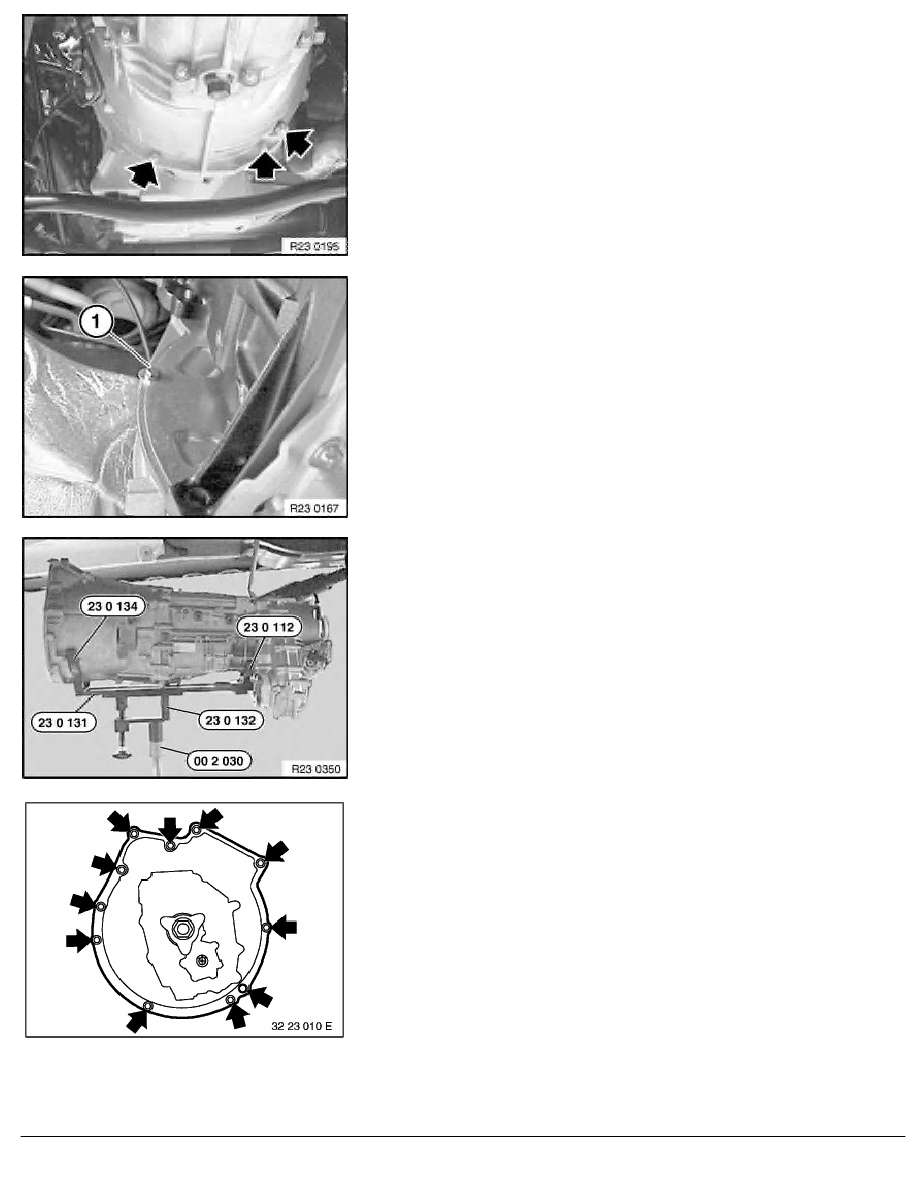

Unfasten screws.
Tightening torque 23 00 1AZ
.
Unscrew bolt (1).
Supporting transmission:
Support transmission with special tools 23 0 134 , 23 0 131 ,
23 0 132 , 23 0 112 and 00 2 030 .
Unfasten screws.
Tightening torque 23 00 1AZ
.
Important!
Do not allow transmission to hang from the transmission input
shaft when removing and installing, as the clutch disk will be
deformed. Pull transmission downwards and remove.
RA Removing and installing transmission (GS6-37BZ)
