LaCrosse V6-3.8L (2009)
Blower Motor: Locations
Instrument Panel/Center Console Component Views

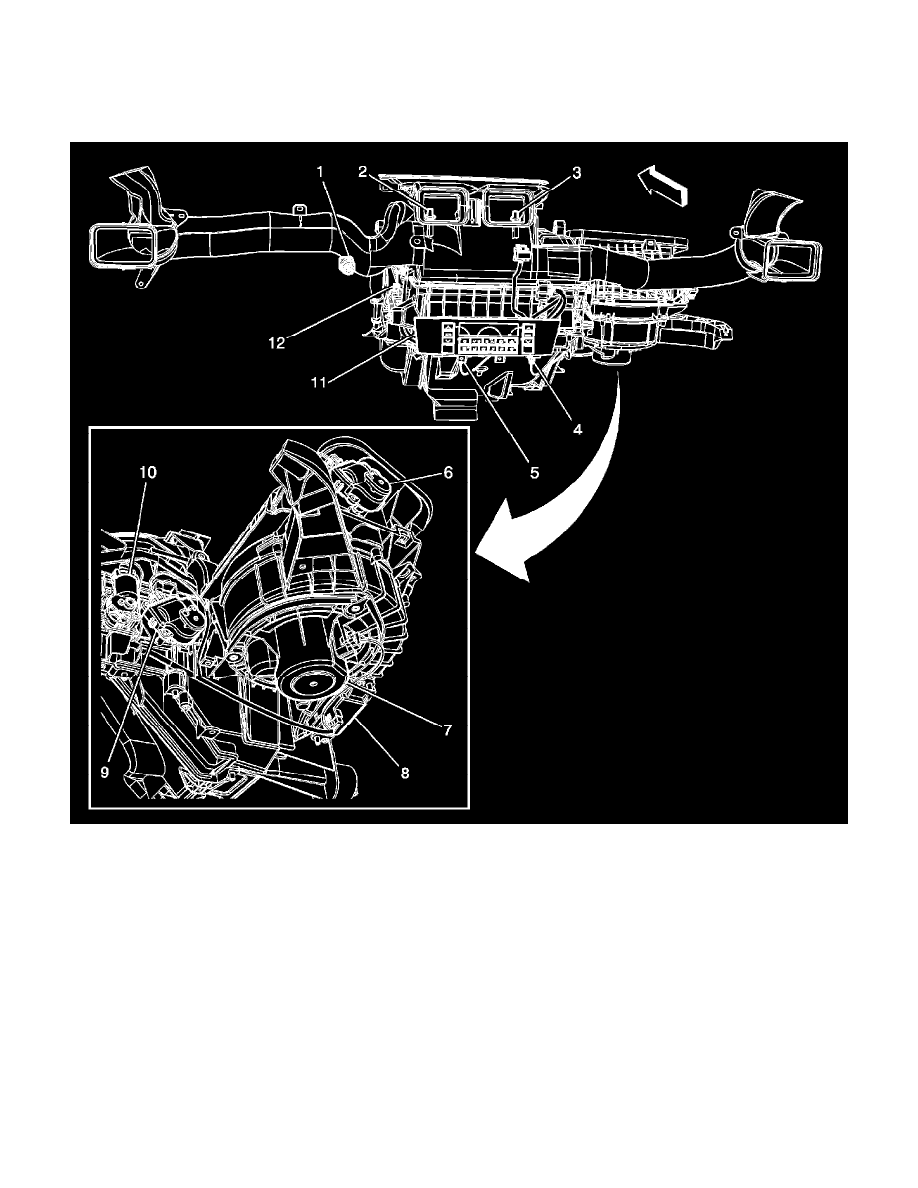

Center of I/P Components
1 - Air Temperature Sensor - Inside (CJ2)
2 - Air Temperature Sensor - Upper Left (CJ2)
3 - Air Temperature Sensor - Upper Right (CJ2)
4 - Air Temperature Sensor - Lower Right (CJ2)
5 - Air Temperature Sensor - Lower Left (CJ2)
6 - Recirculation Actuator
7 - Blower Motor
8 - Blower Motor Control Module
9 - Air Temperature Actuator - Right (CJ2) or Air Temperature Actuator (CJ2)
10 - Mode Actuator
11 - HVAC Control Module
12 - Air Temperature Actuator - Left (CJ2)
