LaCrosse V6-3.8L (2009)
Fuse Block: Locations
Instrument Panel/Center Console Component Views

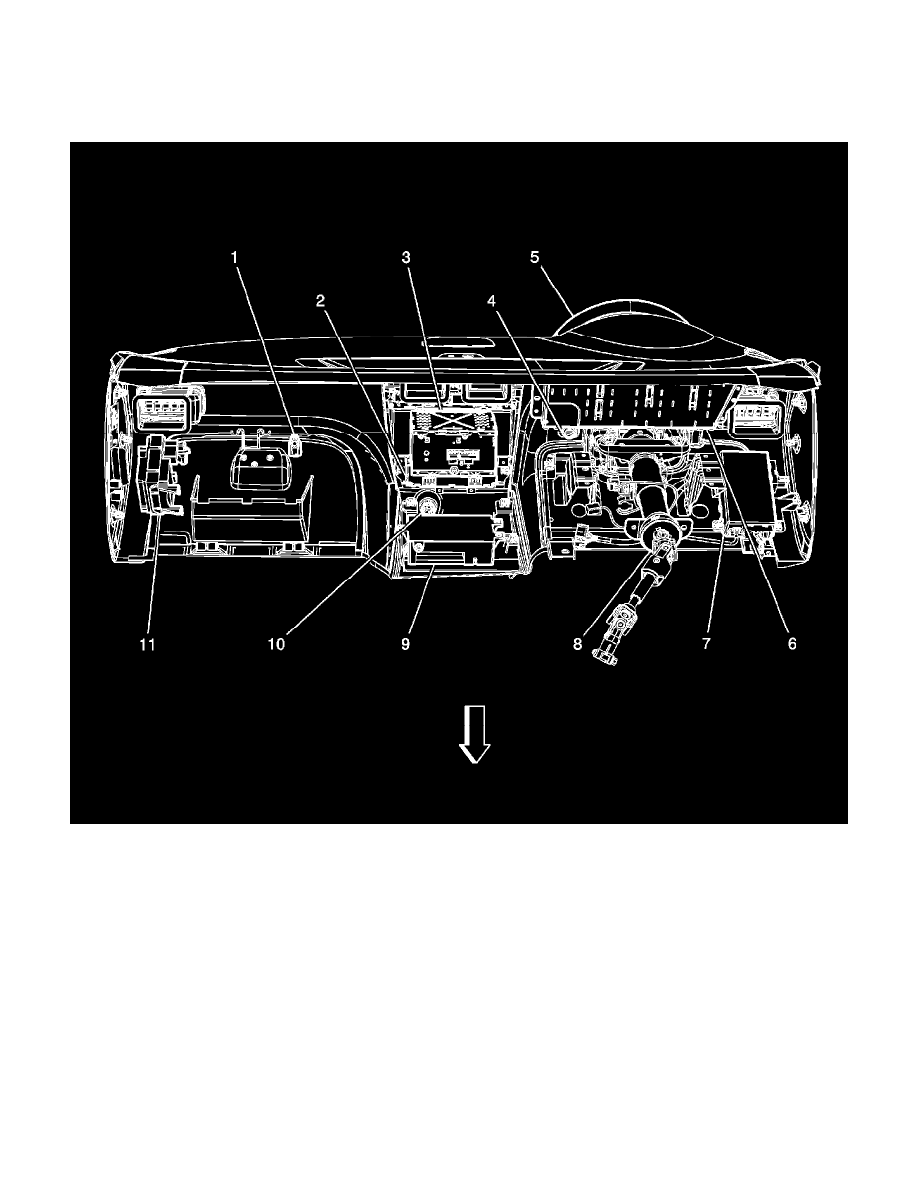

Behind the I/P Components
1 - I/P Compartment Lamp Switch
2 - HVAC Control Module
3 - Radio
4 - Air Temperature Sensor - Inside (CJ2)
5 - Steering Wheel
6 - Instrument Panel Cluster (IPC)
7 - Body Control Module (BCM)
8 - Steering Angle Sensor (JL4)
9 - Vehicle Communication Interface Module (VCIM) (UE1)
10 - Cigar Lighter
11 - Fuse Block - I/P
Right Side I/P Components
