Ignition Control Module: Locations

Make

Buick

Model

LaCrosse

Engine

V6-3.8L

Year

2009

Section

Ignition System › Ignition Control Module › Locations

Powertrain ManagementLocations · page 1 of 5

Ignition Control Module: Locations

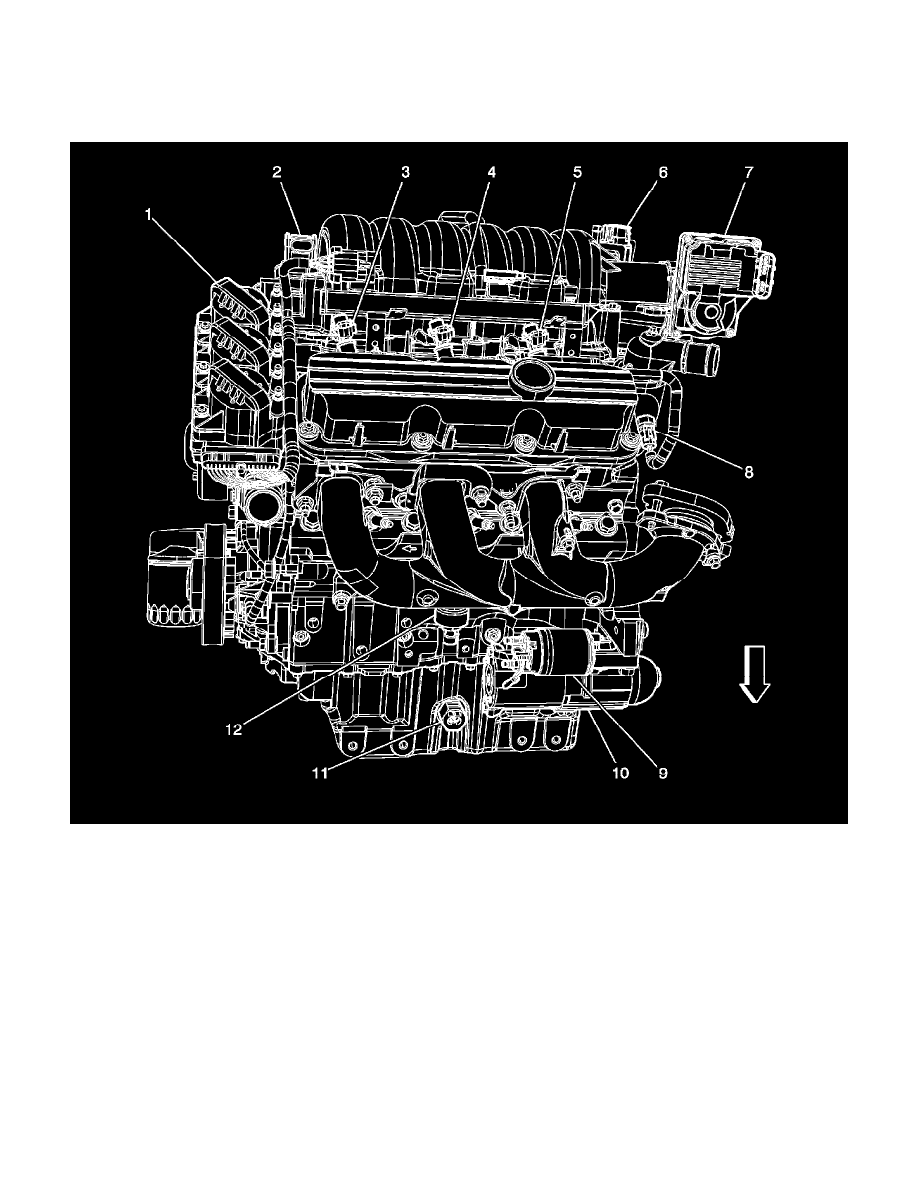

Front of Vehicle/Engine Compartment Component Views

Front of the Engine Components (L26)

1 - Ignition Control Module (ICM)
2 - Manifold Absolute Pressure (MAP) Sensor
3 - Fuel Injector 1
4 - Fuel Injector 3
5 - Fuel Injector 5
6 - Exhaust Gas Recirculation (EGR) Valve
7 - Throttle Body
8 - Engine Coolant Temperature (ECT) Sensor
9 - Starter Solenoid
10 - Starter Motor
11 - Engine Oil Level (EOL) Switch
12 - Knock Sensor (KS) 1

Left Side of the Engine Components (L26)
