Ignition Control Module: Diagrams

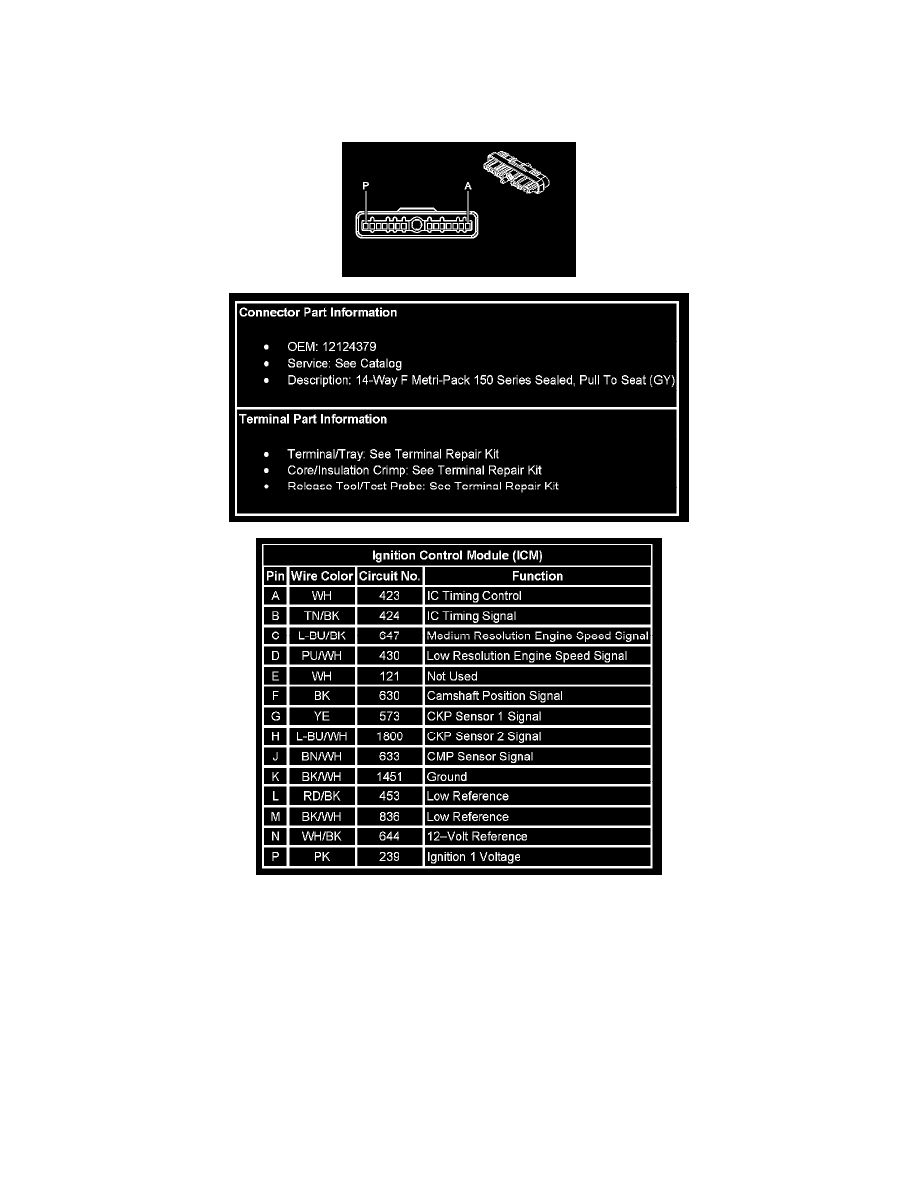

Engine Controls Connector End Views

Ignition Control Module (ICM)
