Lucerne V6-3.9L (2009)
Control Module HVAC: Locations
Instrument Panel/Center Console Component Views

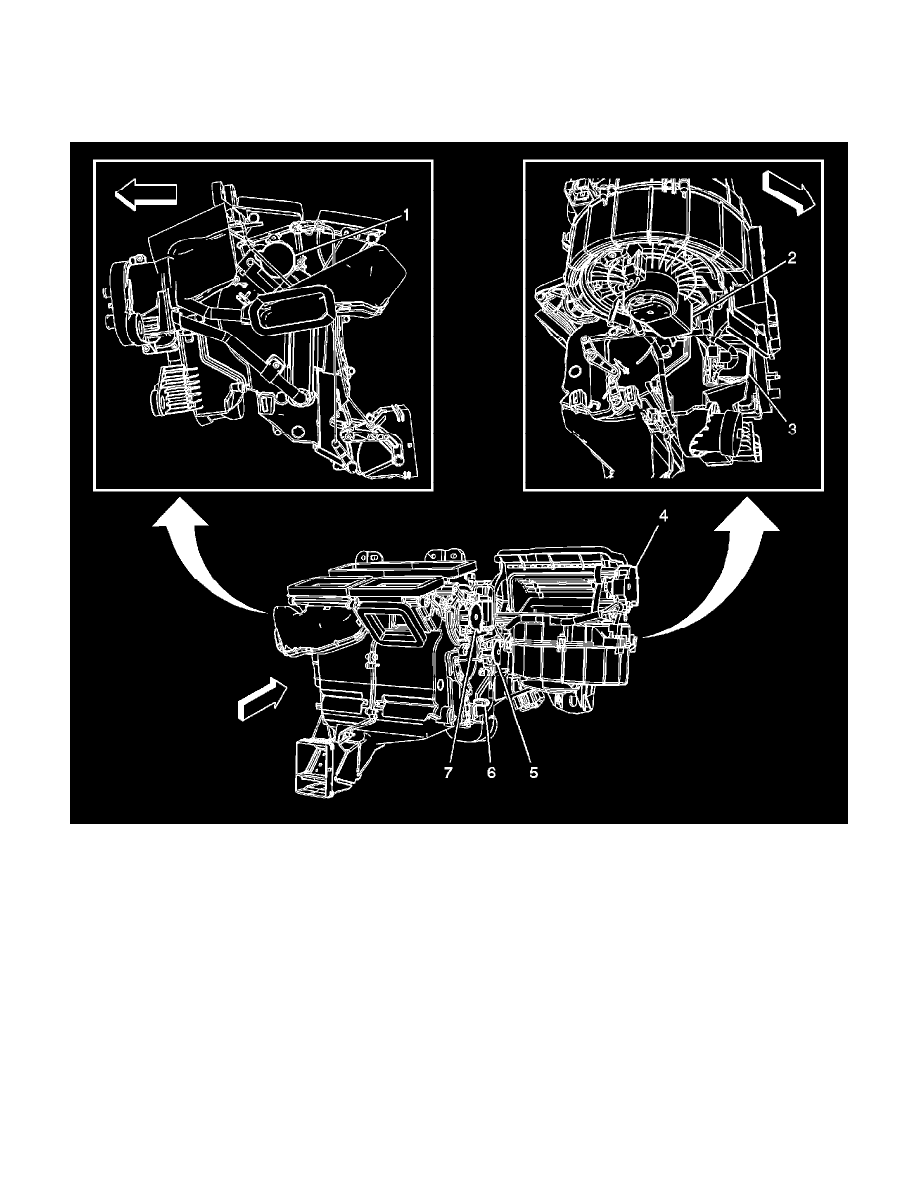

HVAC Module Components (CJ2)
1 - Air Temperature Actuator - Driver (CJ4/CJ2)
2 - Blower Motor
3 - Blower Motor Control Module
4 - Recirculation Actuator
5 - Air Temperature Actuator - Front Passenger (CJ4/CJ2)
6 - EVAP Temperature Sensor
7 - Mode Actuator
HVAC Module Components (C67)
