Lighting and HornsDiagrams · page 1 of 2
background image

Dome Lamp: Diagrams

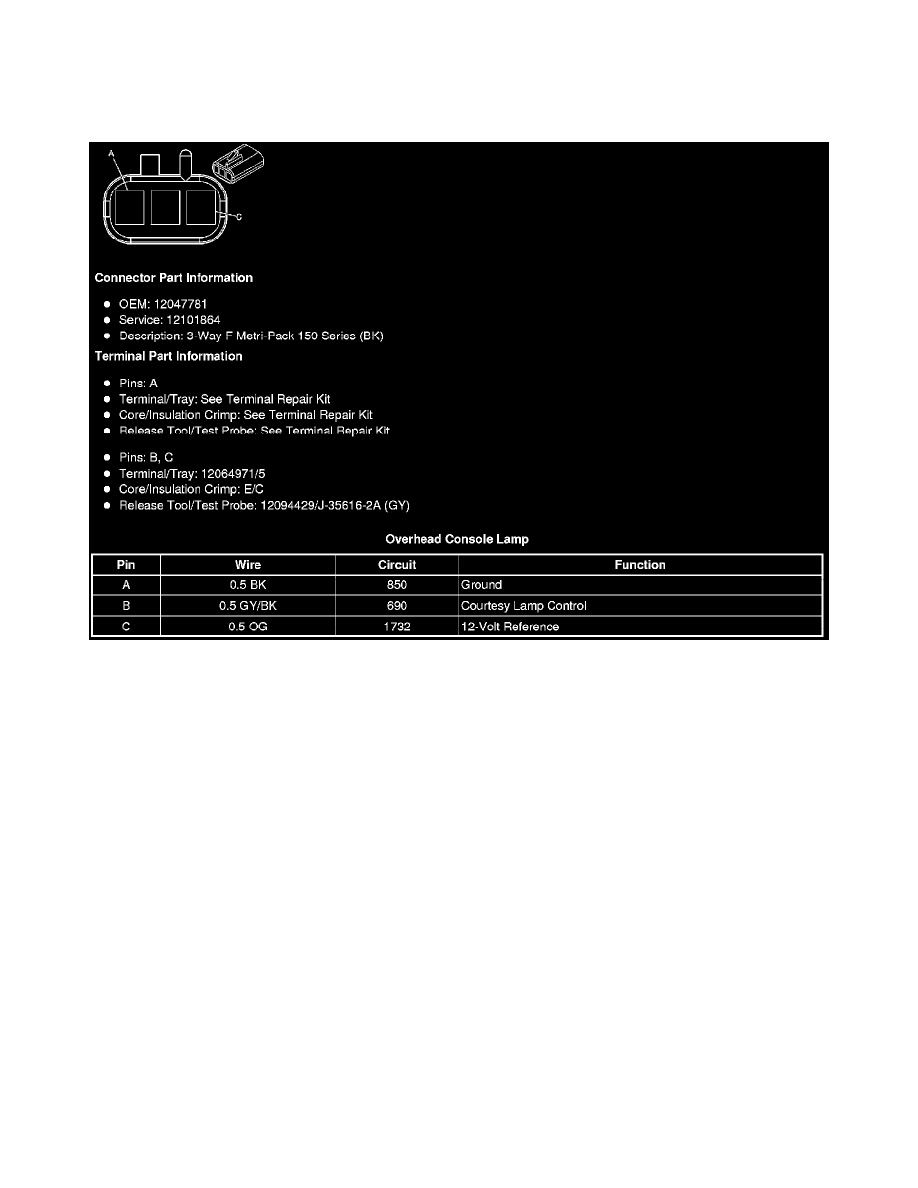

Component Connector End Views

Overhead Console Lamp
