Clearance Lamp: Locations

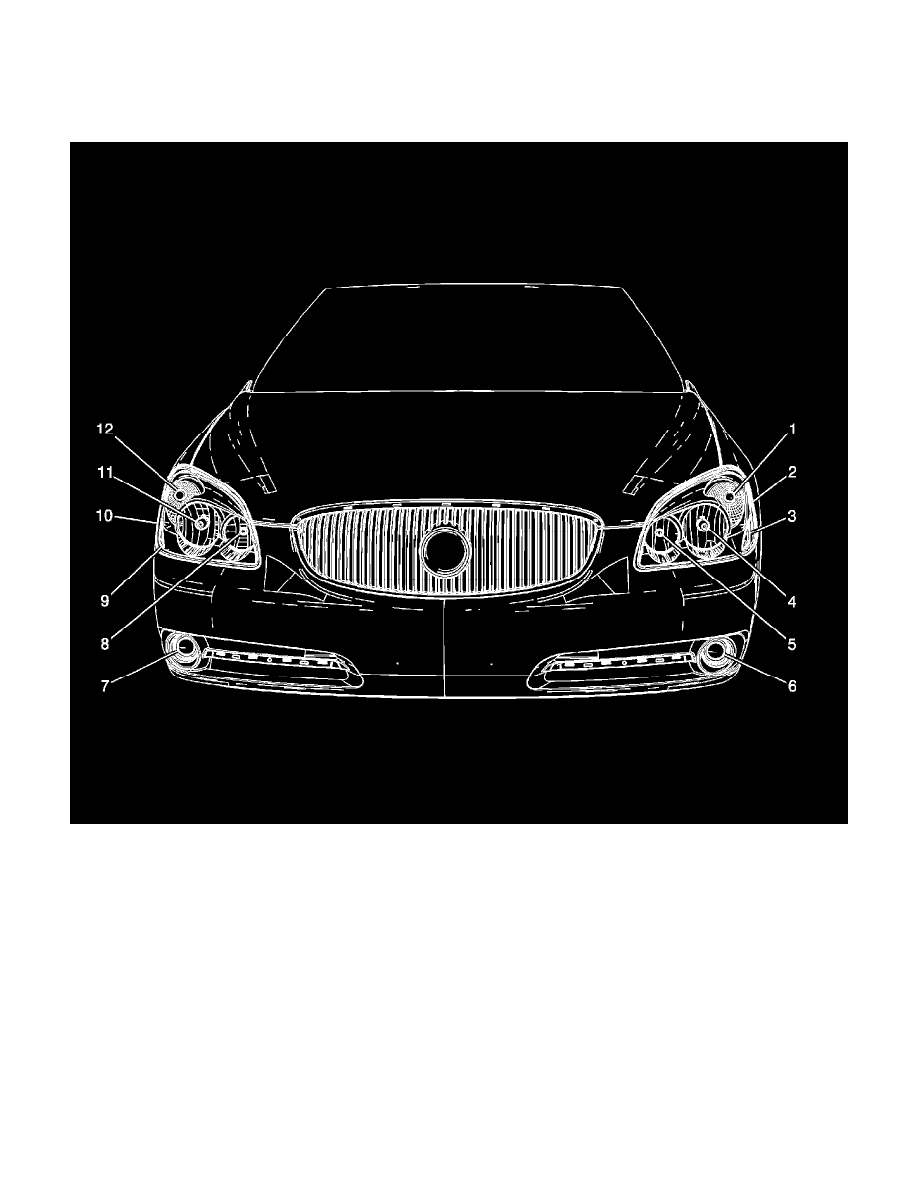

Front of Vehicle/Engine Compartment Component Views

Front of Vehicle

1 - Park/Turn Signal Lamp - Left Front
2 - Marker Lamp - Left Front
3 - Cornering Lamp - Left (TUH)
4 - Headlamp - High Beam - Left
5 - Headlamp - Low Beam - Left
6 - Fog Lamp - Left Front (T96)
7 - Fog Lamp - Right Front (T96)
8 - Headlamp - Low Beam - Right
9 - Cornering Lamp - Right (TUH)
10 - Marker Lamp - Right Front
11 - Headlamp - High Beam - Right
12 - Park/Turn Signal Lamp - Right Front
