Power and Ground DistributionLocations
Fuse Block: Locations
Front of Vehicle/Engine Compartment Component Views

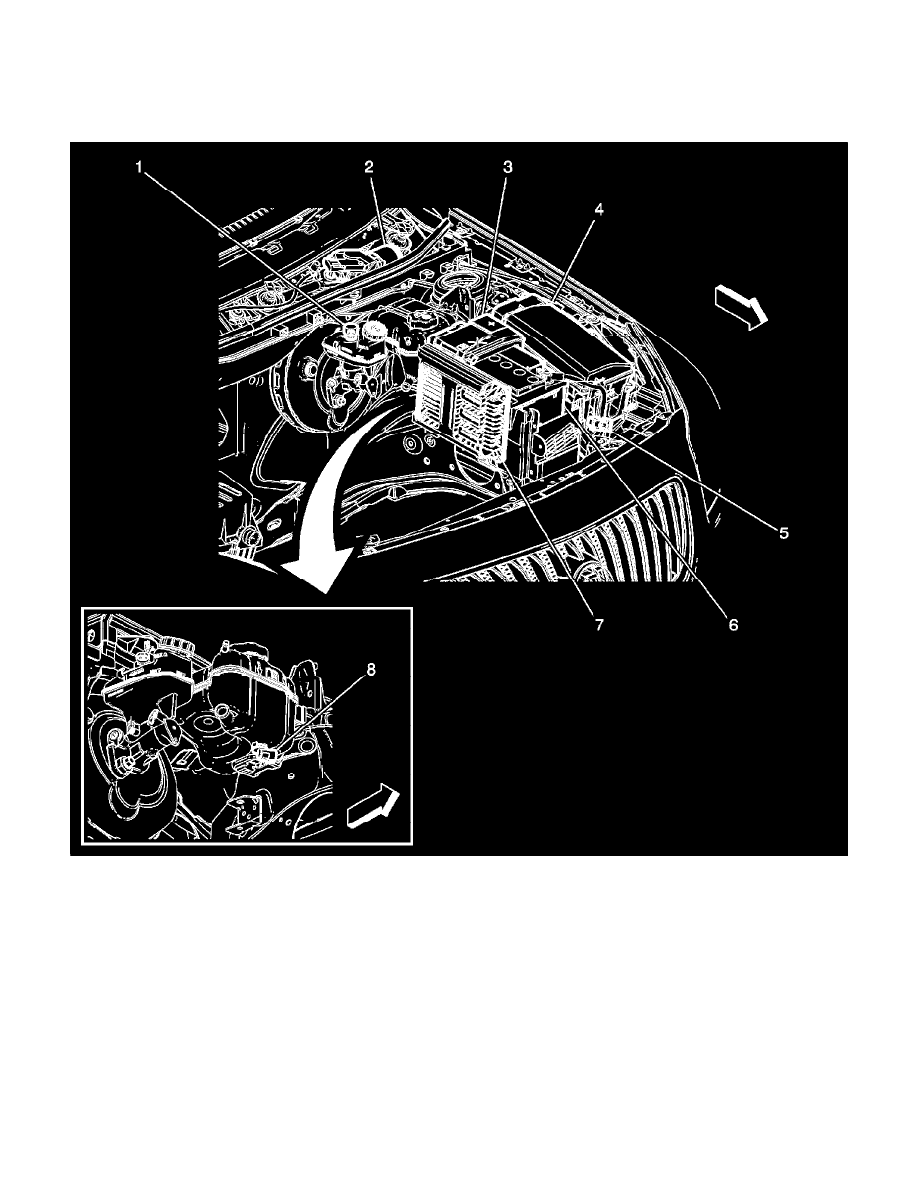

Left Side of Engine Compartment Components
1 - M75 Windshield Wiper Motor
2 - B20 Brake Fluid Level Switch
3 - X50D Fuse Block - Battery
4 - X50A Fuse Block - Underhood
5 - B18 Battery Current Sensor
6 - C1 Battery
7 - K20 Engine Control Module
8 - B33 Engine Coolant Level Switch
