Catera V6-3.0L VIN R (1997)
Antenna Amplifier: All Technical Service Bulletins
Installation
1.
Install the new antenna amplifier (2 screws, 2 connectors).
2.
Starting at the rear parcel shelf, route the new antenna cable (Avoid attaching the new antenna cable to pre-existing wire harnesses to prevent
electrical interference):
^

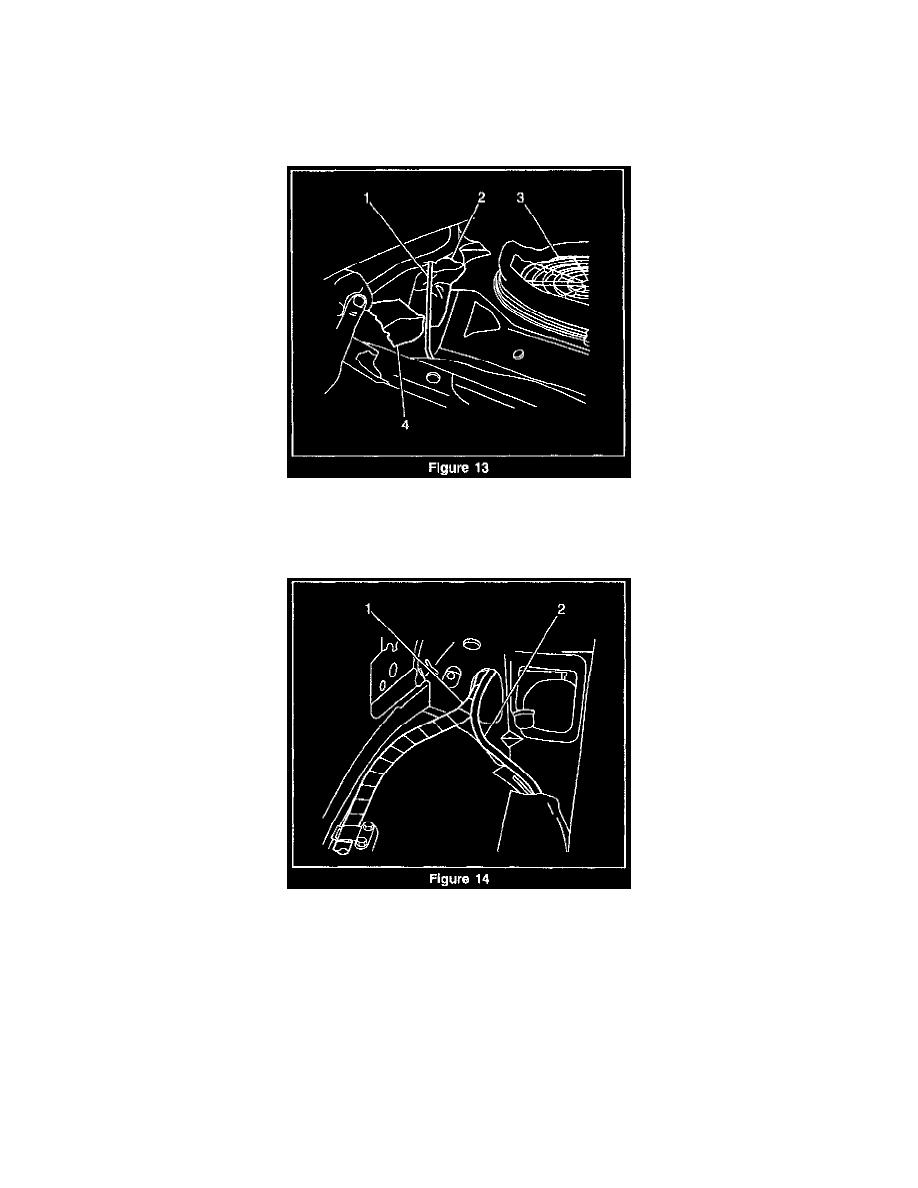

Place the tape (4) around the edge of the hole (2) in the rear seat-to-back window panel to prevent chafing of the new antenna cable (1). Refer
to Figure 13.
^
Route the antenna cable through the hole in the rear seat-to-back window panel.
^
Run the antenna cable down the inboard side of the wheel well. Refer to Figure 14.
