Catera V6-3.0L VIN R (1997)
^

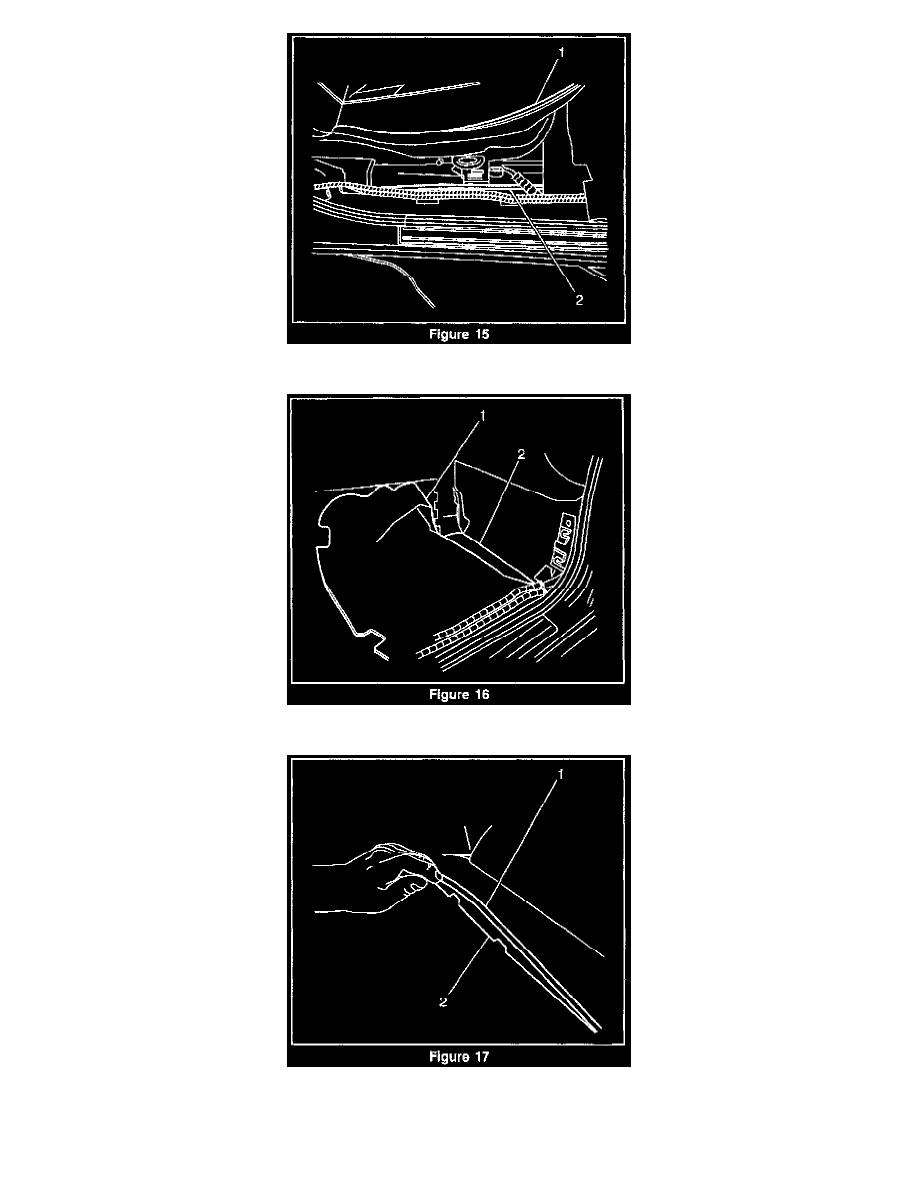

Run the antenna cable (2) along the RH side of the vehicle to the front kick panel. Refer to Figure 15.
^
Pull back on the RH side front carpet (1) to expose the wire channel (2) on the floorpan. Refer to Figure 16.
^
Route the antenna cable (1) in the track (2) of the existing plastic wire harness located on the front floor pan. Refer to Figure 17.
^
Route the antenna cable up to the radio along the side of the HVAC module.
