Catera V6-3.0L VIN R (1997)
Speaker: Service and Repair
Rear Speaker
REMOVAL PROCEDURE

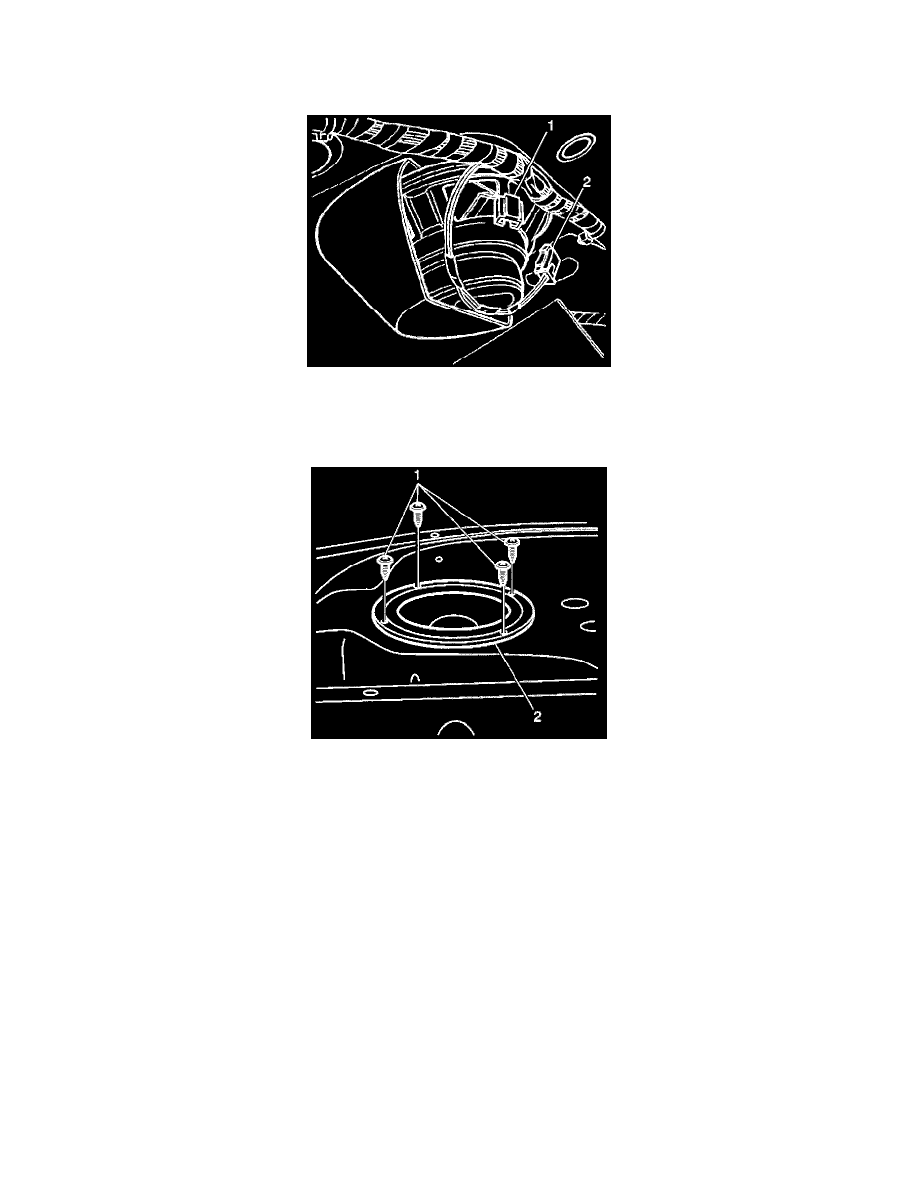

Speaker Replacement (Rear Speaker): Removal Procedure
1. Remove the rear seat to rear window trim panel.
2. Disconnect the radio rear speaker connector (1).
Speaker Replacement (Rear Speaker): Removal Procedure
3. Remove the speaker screws (1).
4. Remove the speaker (2) with the baffle from the rear parcel shelf.
INSTALLATION PROCEDURE
