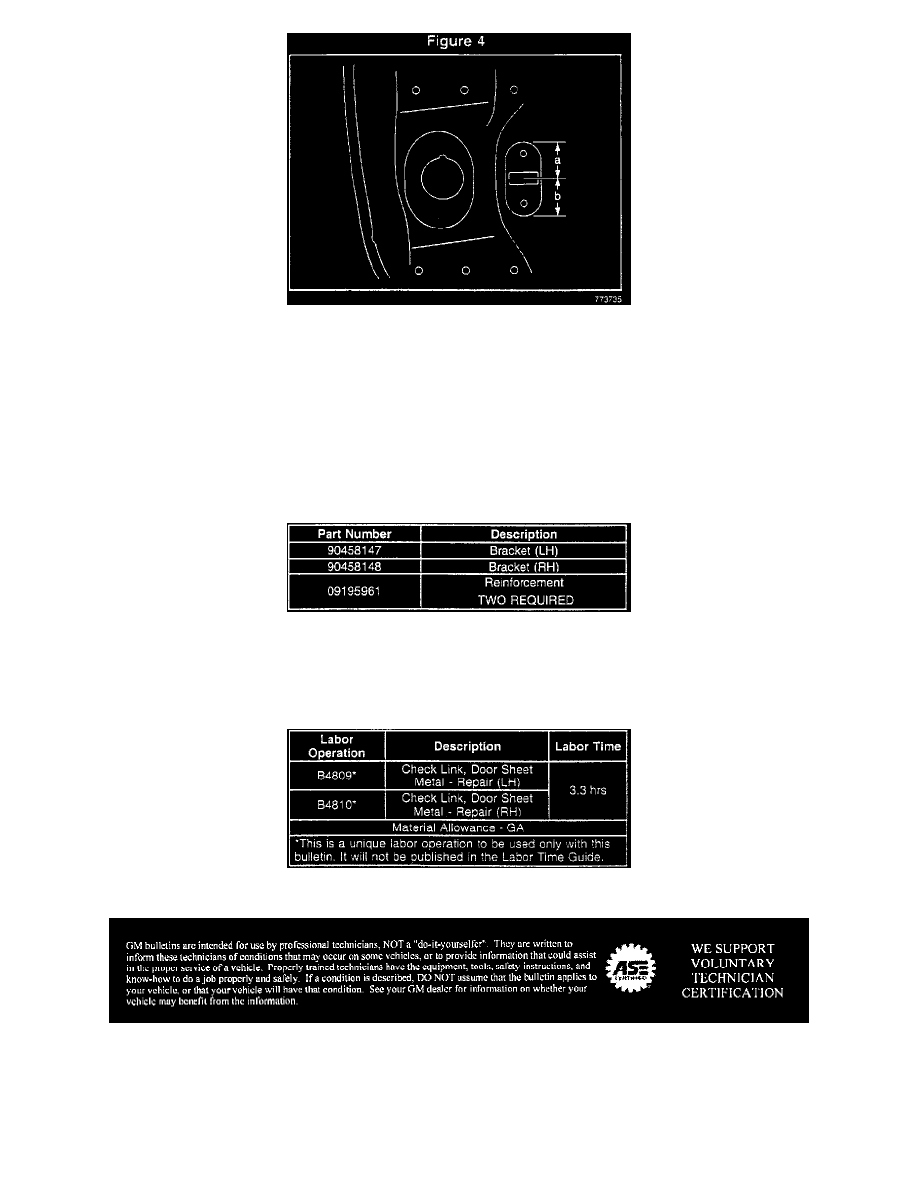

Locate the new check link bracket inside the door. Dimension A is 27 mm (1-3/16 in) Dimension B is 29 mm (1-5/16 in). Mark the position. See
Figure 4.
24.
Plug weld the eight weld locations.
25.
Refinish the front door shell.
26.
Assemble the reinforcement plates and check link to the door. The longer of the two reinforcements goes between the check link and new bracket
and the shorter one goes on the front side of the bracket.
27.
Install door and mount the parts in reverse order.
Parts Information
Parts are currently available from GMSPO.
Warranty information
For vehicles repaired under warranty use table as shown.
