Catera V6-3.0L VIN R (1997)
Rear Door Exterior Handle: Service and Repair

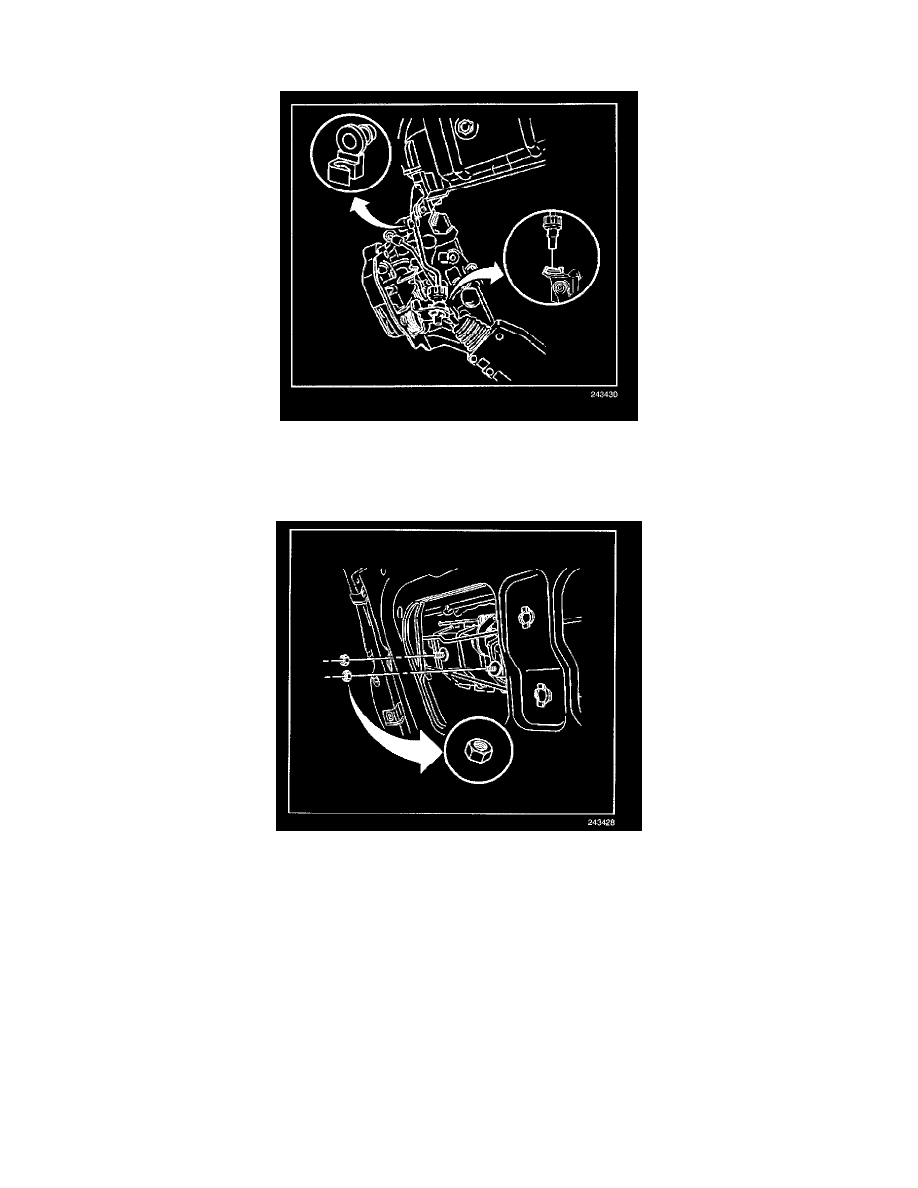

REMOVAL PROCEDURE
1. Remove the door trim panel.
2. Remove the door water deflector.
3. Remove the inside door handle.
4. Remove all the outside door handle rods.
5. Remove the outside door handle nuts.
6. Remove the outside door handle and gasket.

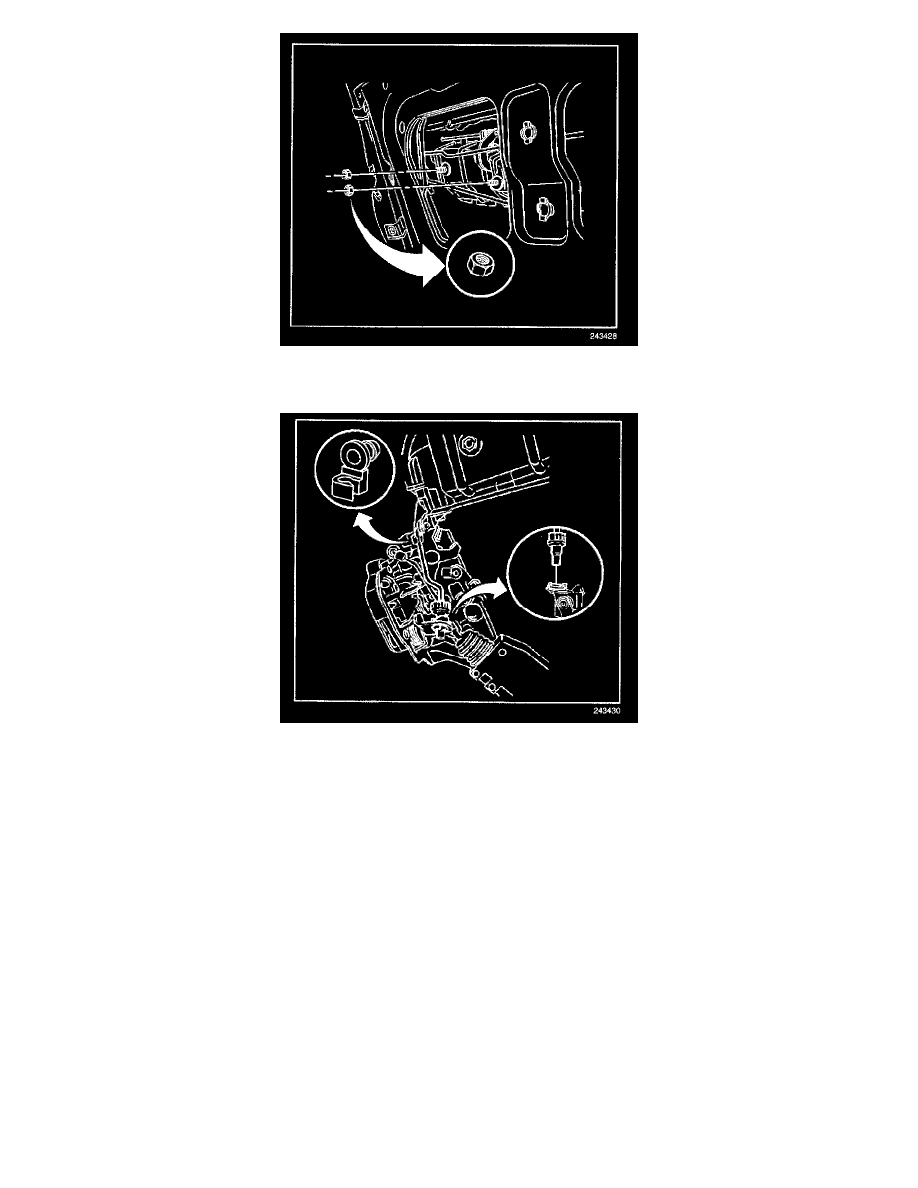

INSTALLATION PROCEDURE
