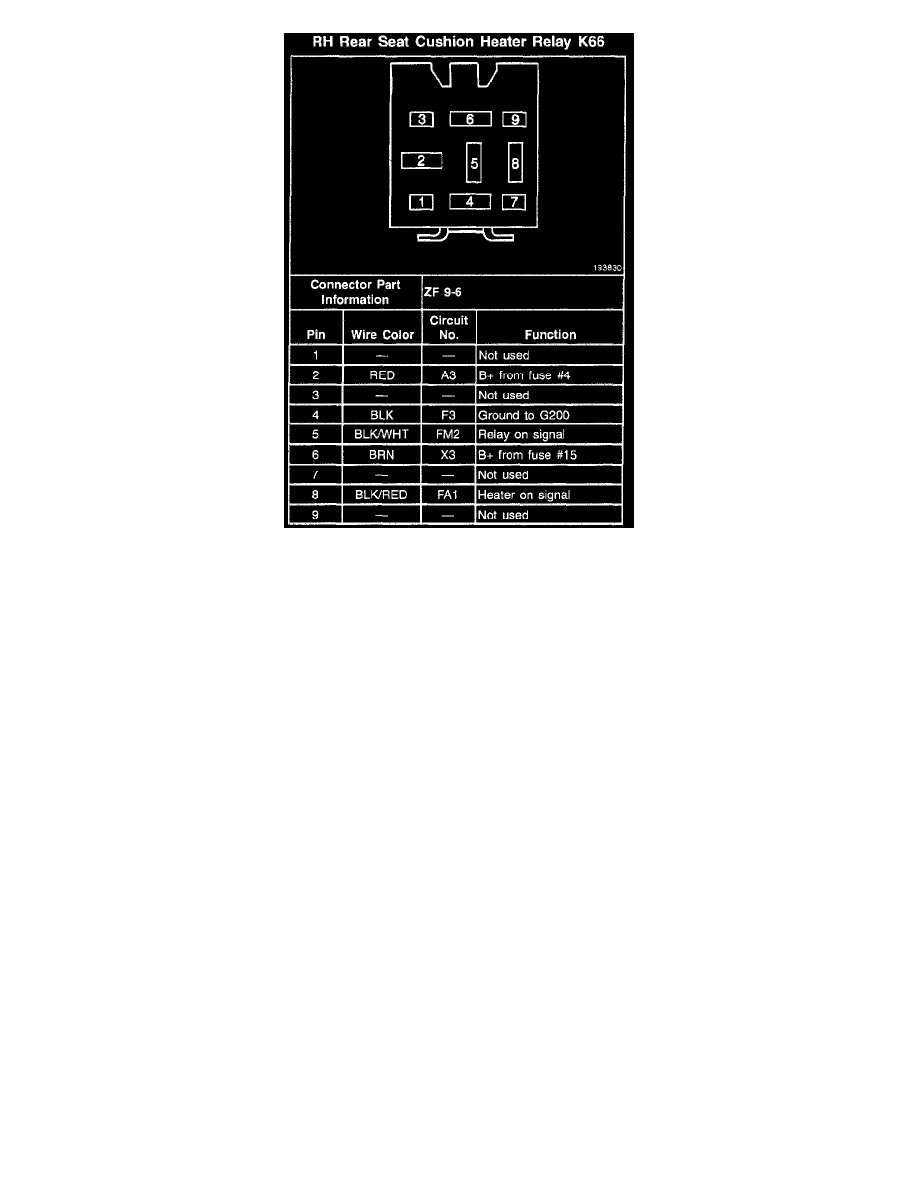

RH Rear Seat Cushion Heater Relay K66

Body and Frame
Seats
Seat Heater Relay / Component Information
Diagrams / Seat Cushion Heater Relay, LH Rear
Page 8552
