Catera V6-3.0L VIN R (1997)

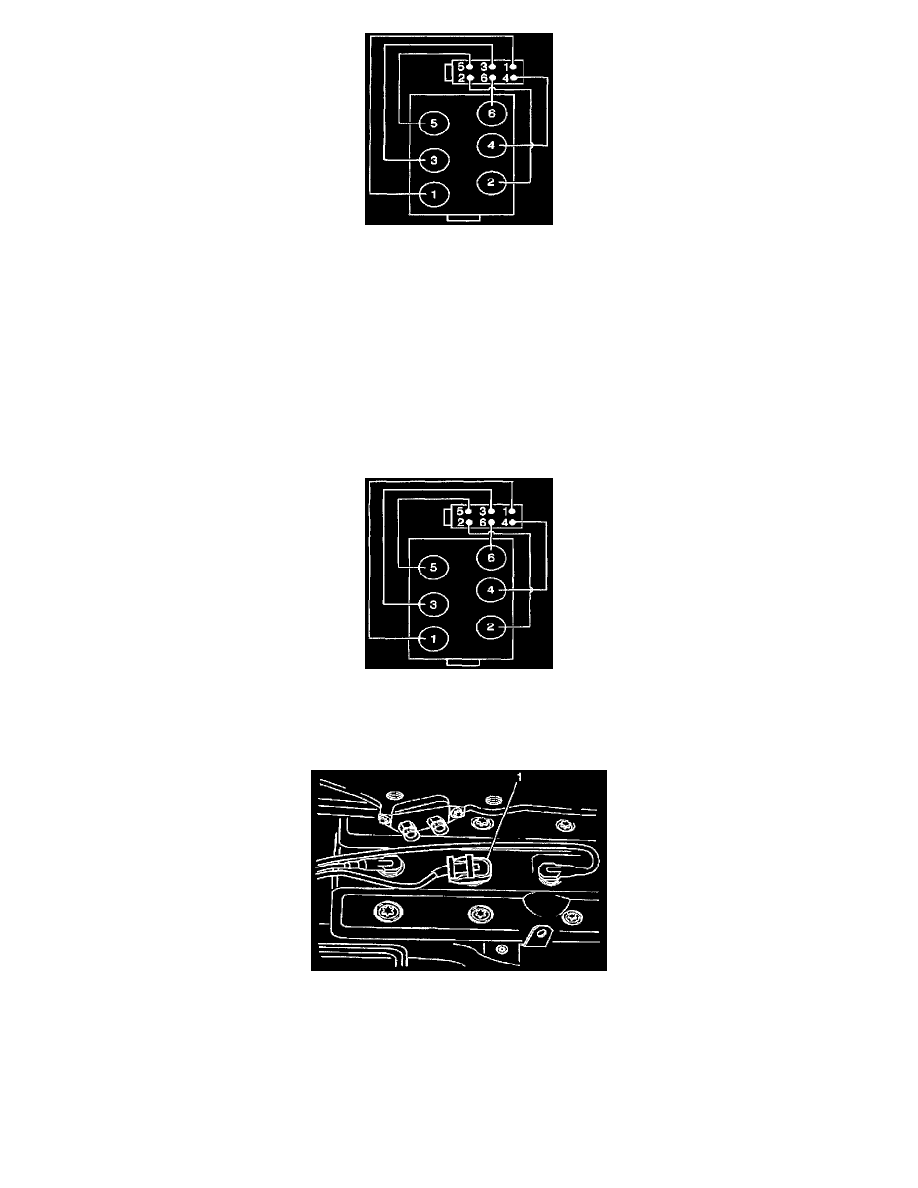

Spark Plug Wire Harness Replacement: Removal Procedure
8. Remove the spark plug wire harness from routing retainers on valve covers and from ignition coil.
INSTALLATION PROCEDURE
NOTE: Note the spark plug wire harness routing during harness removal. Improper routing during installation can cause the following conditions:
^
Radio noise
^
Ignition noise
^
Spark plug crossfiring
^
Ground lead shorts
^
Cutting and chaffing of the wires
Spark Plug Wire Harness Replacement: Installation Procedure
1. Install the spark plug wires to ignition coil.
2. Install the spark plug wires to routing retainers on valve covers.
Spark Plug Wire Harness Replacement: Installation Procedure
3. install the spark plug boots to spark plugs.
4. Install spark plug boot remover tool (1) to spark plug boot.
