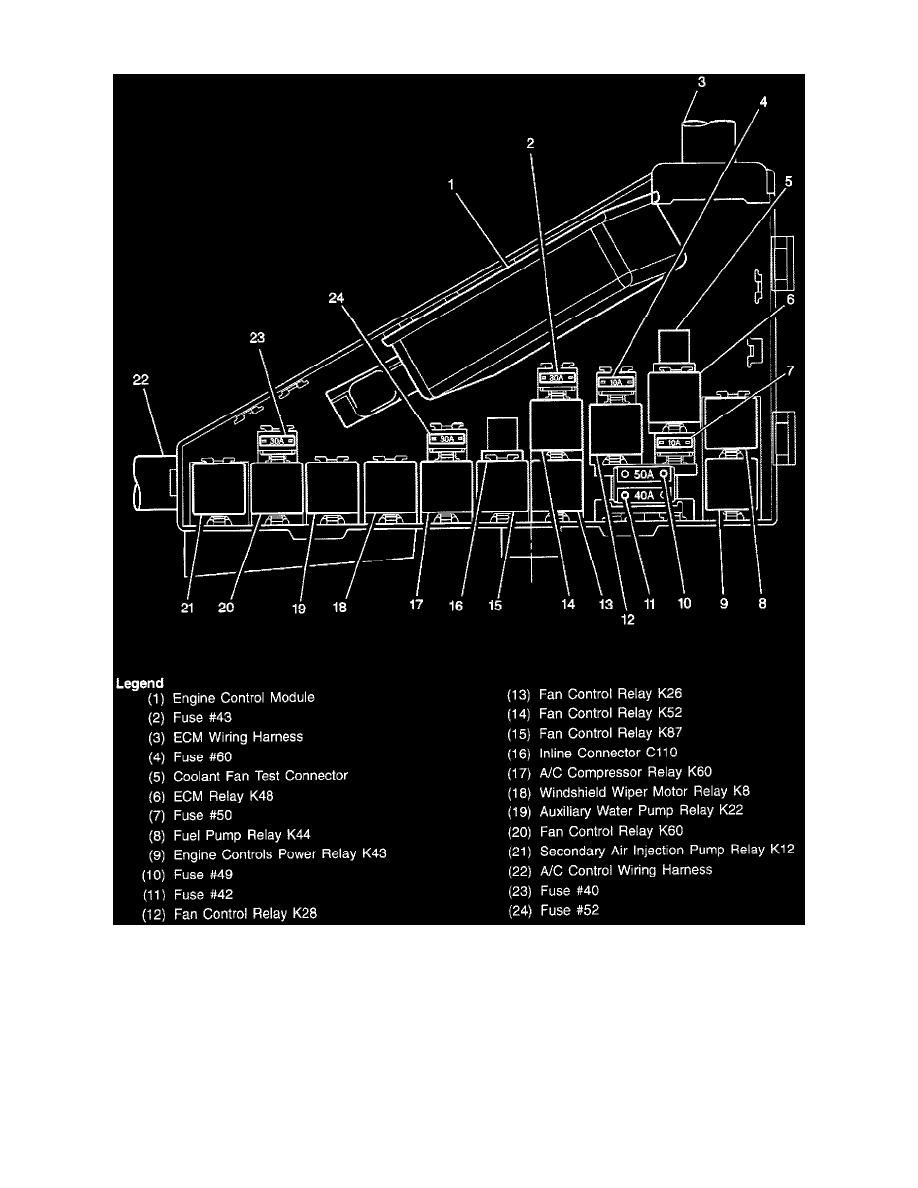

Compressor Clutch Relay: Locations

ECM Housing

LH front of the engine compartment, in the ECM housing, at position 17

Heating and Air Conditioning
Compressor Clutch Relay
Component Information
Locations
