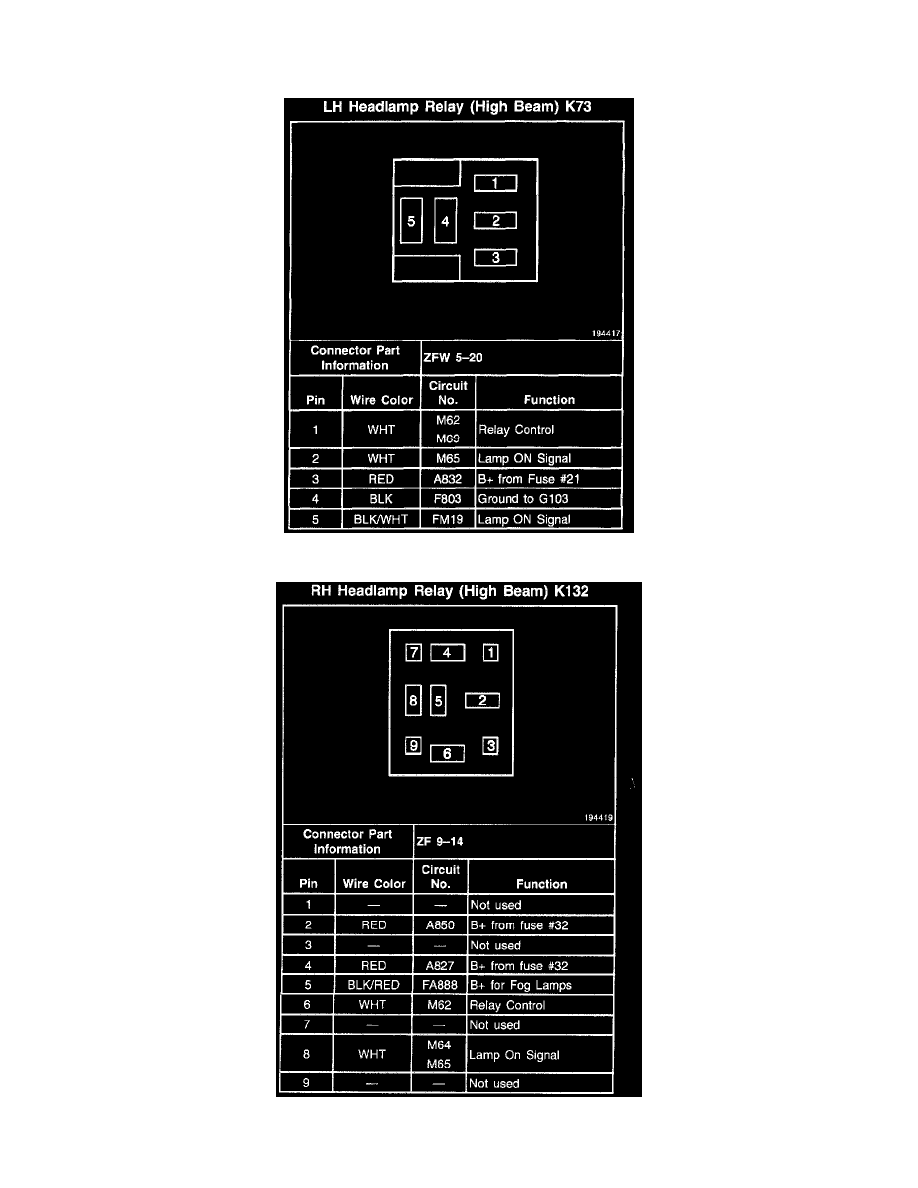

Headlamp Relay: Diagrams
Headlamp Relay (High Beam)

LH Headlamp Relay (High Beam) K73

RH Headlamp Relay (High Beam) K132
