Catera V6-3.0L VIN R (1997)

Page 1
background image

Fuel Pressure Test Port: Locations

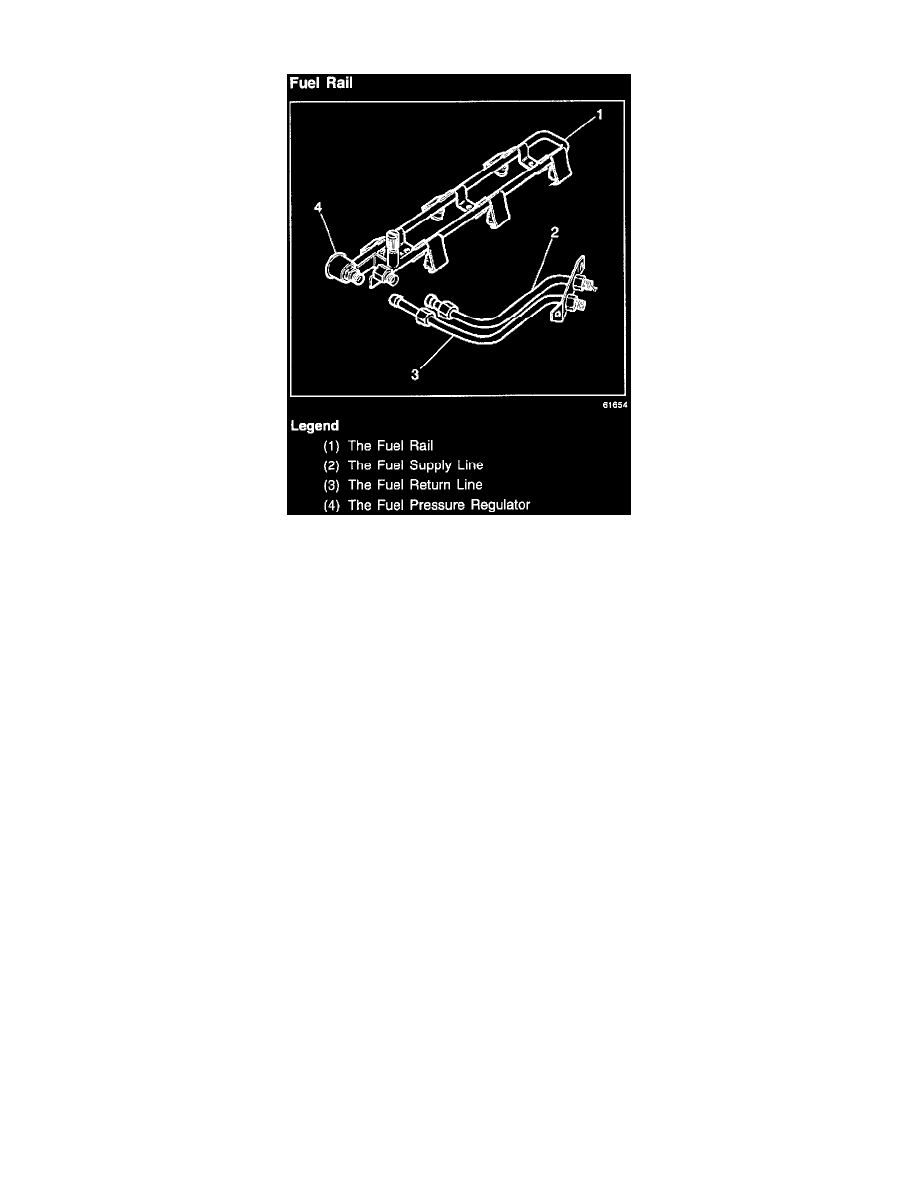

The fuel pressure test port is located on the fuel rail (see image).
