Catera V6-3.0L VIN R (1997)

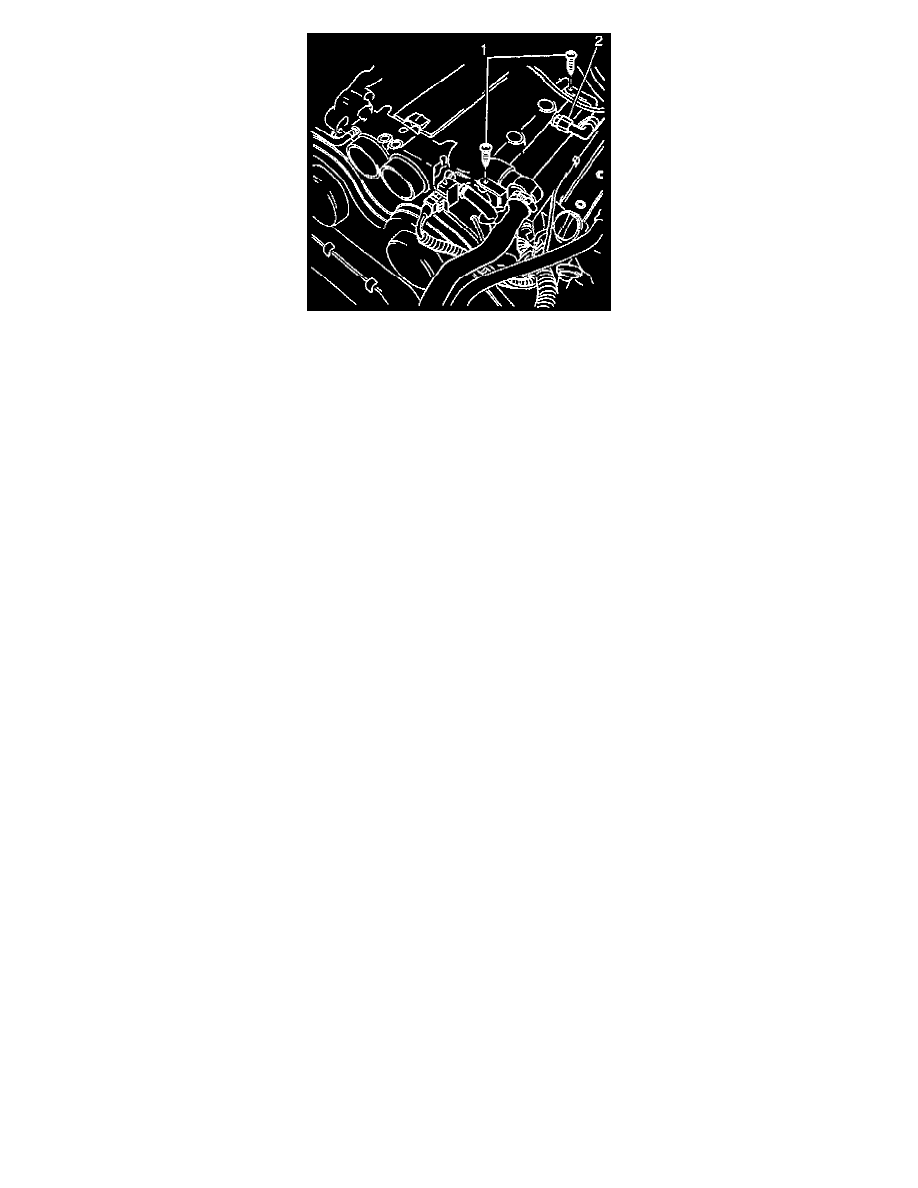

13. Install the wiring channel bolts (1) to intake plenum. Tighten the wiring channel bolts to 8 Nm (71 inch lbs.).
14. Install the brake booster threaded vacuum hose (2) to the intake plenum. Tighten the brake booster threaded vacuum hose until fully seated. Do no
strip the brake booster threaded hose.
15. Install the Throttle Position Sensor (TPS) and Idle Air Control (IAC) electrical connection.
16. Install the accelerator cable and cruise control cable bracket.
17. Install the accelerator cable and cruise control cable bracket bolts. Tighten the accelerator cable and cruise control cable bracket bolts to 8 Nm (71
inch lbs.).
18. Install the accelerator cable to the bracket.
19. Install the accelerator cable and cruise control cable to the throttle body linkage.
20. Install the intake plenum air inlet hoses to the throttle body.
21. Install the IAC inlet hose and electrical connection.
22. Install the IAC inlet hose clamp.
23. Reconnect the negative battery cable.
24. Reprogram the applicable accessories.
