Catera V6-3.0L VIN R (1997)
Resonator: Service and Repair
Intake Resonator Switchover Solenoid Replacement
Intake Resonance Switchover Solenoid
Removal Procedure

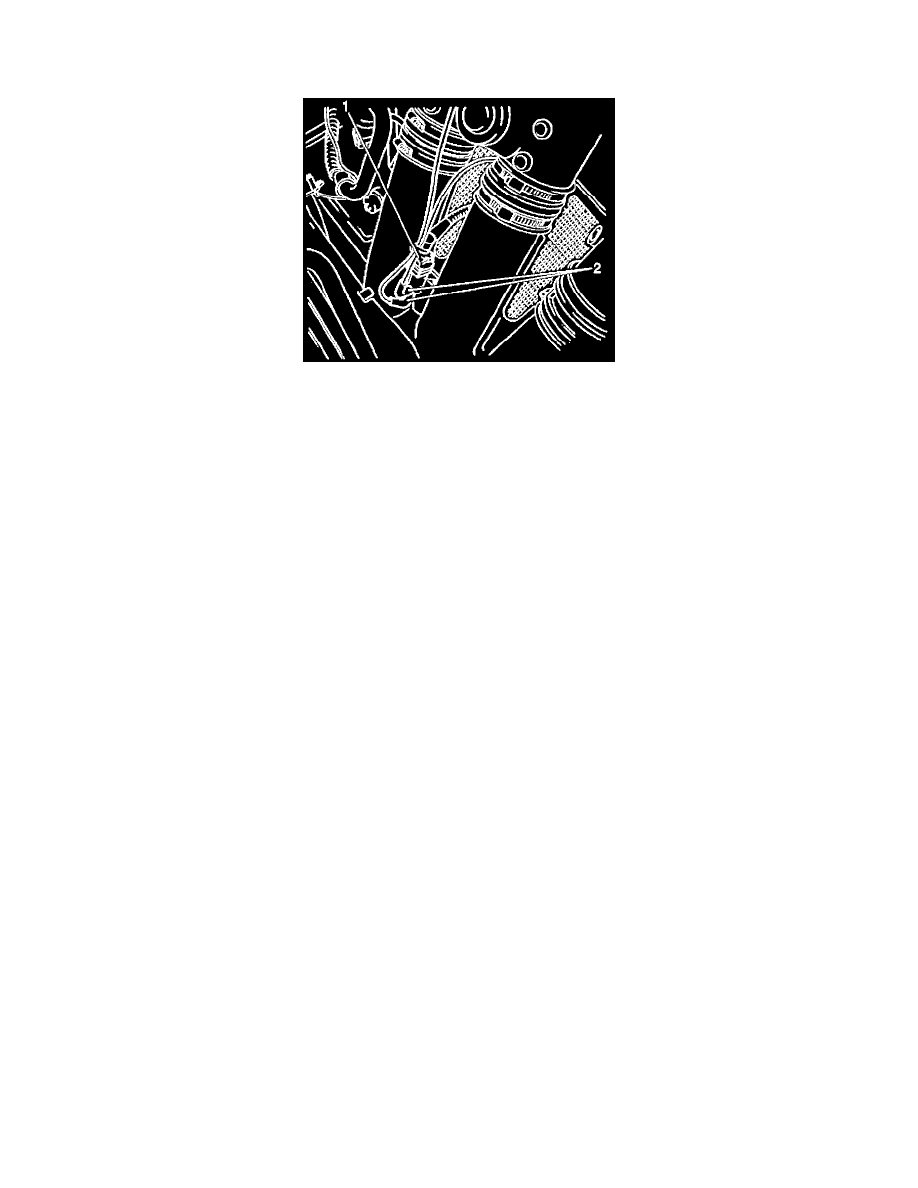

Notice: Numbers in text correspond to numbered components in image.
1. Remove the wiring harness (1) plug from the solenoid valve and the vacuum hoses (2). If necessary, remove the mounting straps from the wiring
harness plug.
2. Remove the solenoid valve from the pre-volume chamber.
Installation Procedure
1. Install the solenoid valve on the pre-volume chamber.
2. Install the wiring harness (1) plug to the solenoid valve and the vacuum hoses (2). Then, fasten the vacuum hoses to the wiring harness plug with
the mounting strap.
