Catera V6-3.0L VIN R (1997)
Ignition Coil Replacement: Installation Procedure
1. Install the ignition coil.
2. Install the bolts to ignition coil.
Tighten
Tighten the ignition coil bolts to 8 N.m (71 lb in).

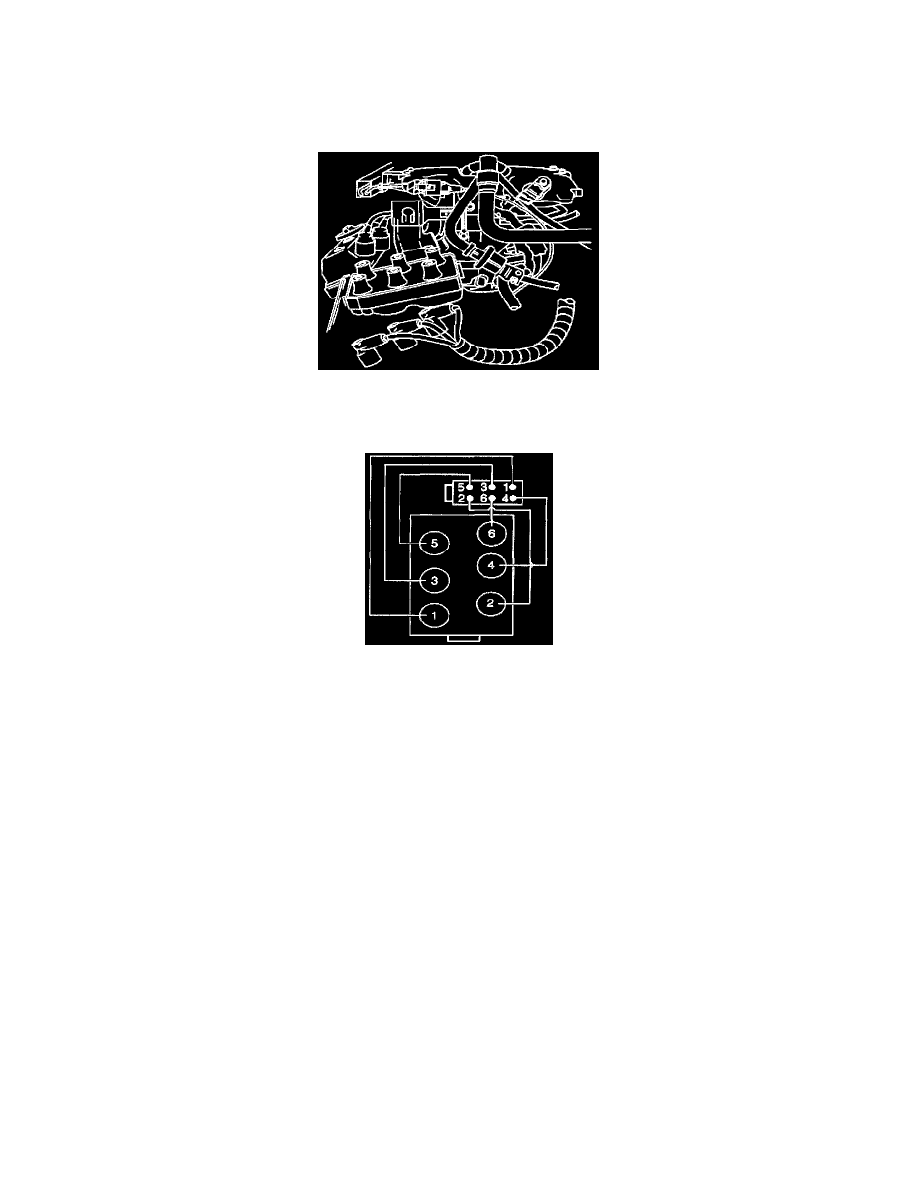

Ignition Coil Replacement: Installation Procedure
3. Install the electrical connection to ignition coil.
Ignition Coil Replacement: Installation Procedure
4. Install the spark plug wiring harness to ignition coil.
5. Install the power brake booster vacuum connection to intake plenum.
Tighten
Tighten the power brake booster vacuum connection until snug. Counter hold fitting while tightening.
6. Install the wiper motor.
7. Install the left and the right side air inlet grilles.
8. Install the wiper arms.
