Catera V6-3.0L VIN R (1997)

  • Powertrain Management
  • Tune-up and Engine Performance Checks
  • Fuel Pressure
  • Fuel Pressure Test Port
  • Component Information
  • Locations

Page 1
background image

Fuel Pressure Test Port: Locations

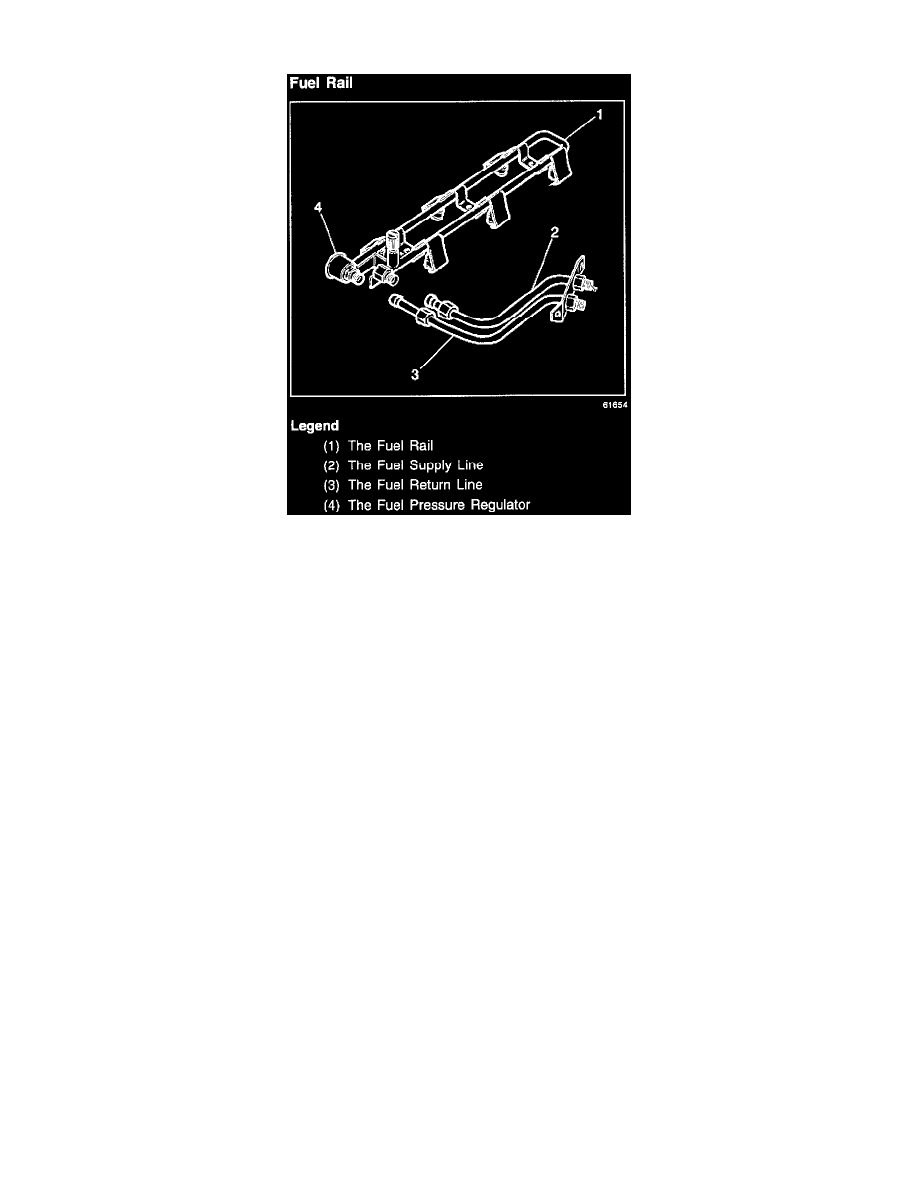

The fuel pressure test port is located on the fuel rail (see image).
