Catera V6-3.0L VIN R (1997)
31. Route the deployment harness out of the passenger side of the vehicle.
32. Install the inflatable restraint P module to it's mounting bracket. Refer to Infl Rst Instrument Panel Inflator Module under Air Bag / Service and
Repair.
33. Clear the inside and outside of the vehicle of any people or loose and flammable objects.
34. Stretch the driver harness to full length.
35. Stretch the passenger harness to full length.
36. Completely cover the windshield and front door window openings with a drop cloth.

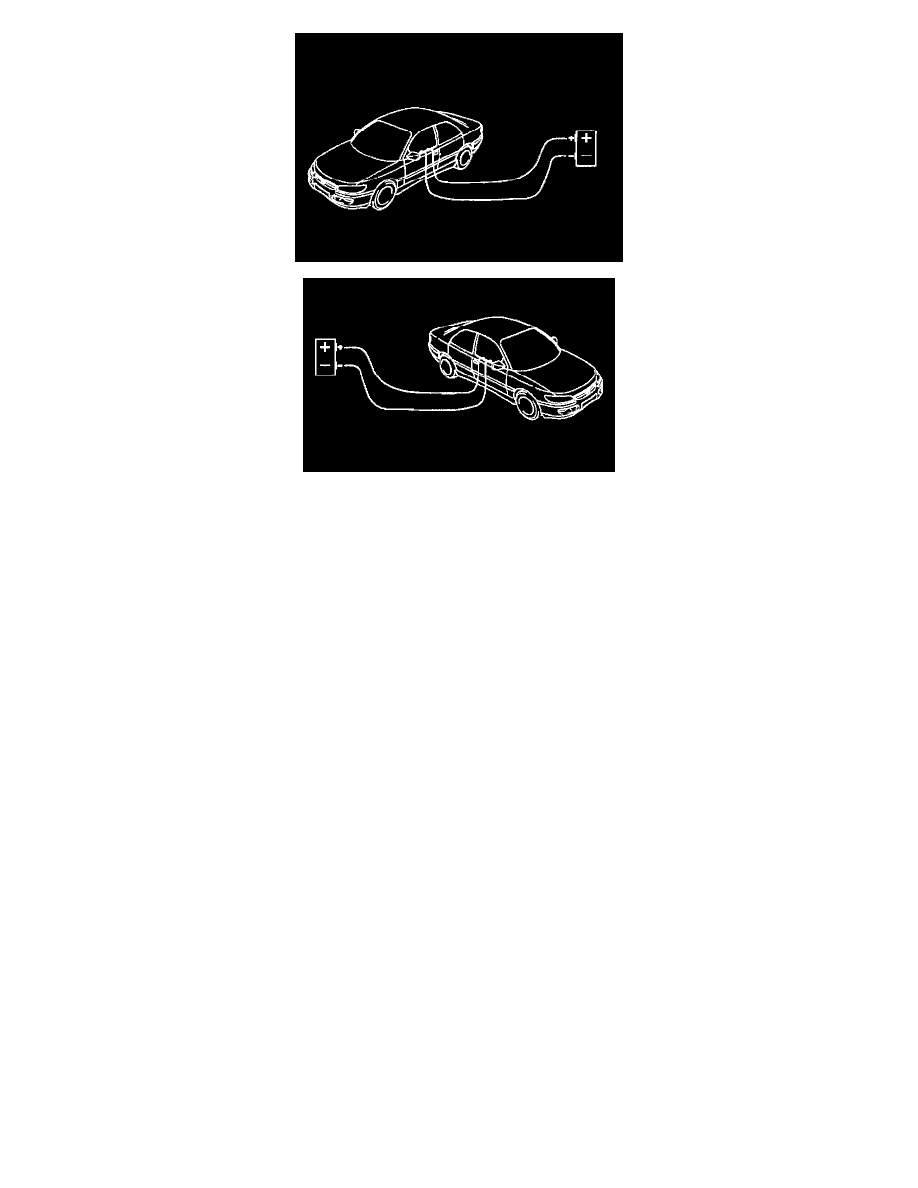

37. Place a power source, 12V minimum/2A minimum (i.e. a vehicle battery) near the shorted end of the harness.
38. Separate the two ends of the driver deployment harness wires.
39. Connect the driver deployment harness wires to the power source in order to deploy the inflatable restraint steering wheel module.
40. Disconnect the driver deployment harness wires from the power source.
41. Separate the two ends of the passenger deployment harness wires.
42. Connect the passenger deployment harness wires to the power source in order to deploy the inflatable restraint IP module.
43. Disconnect the passenger deployment harness wires from the power source.
