Catera V6-3.0L VIN R (1997)

Page 1
background image

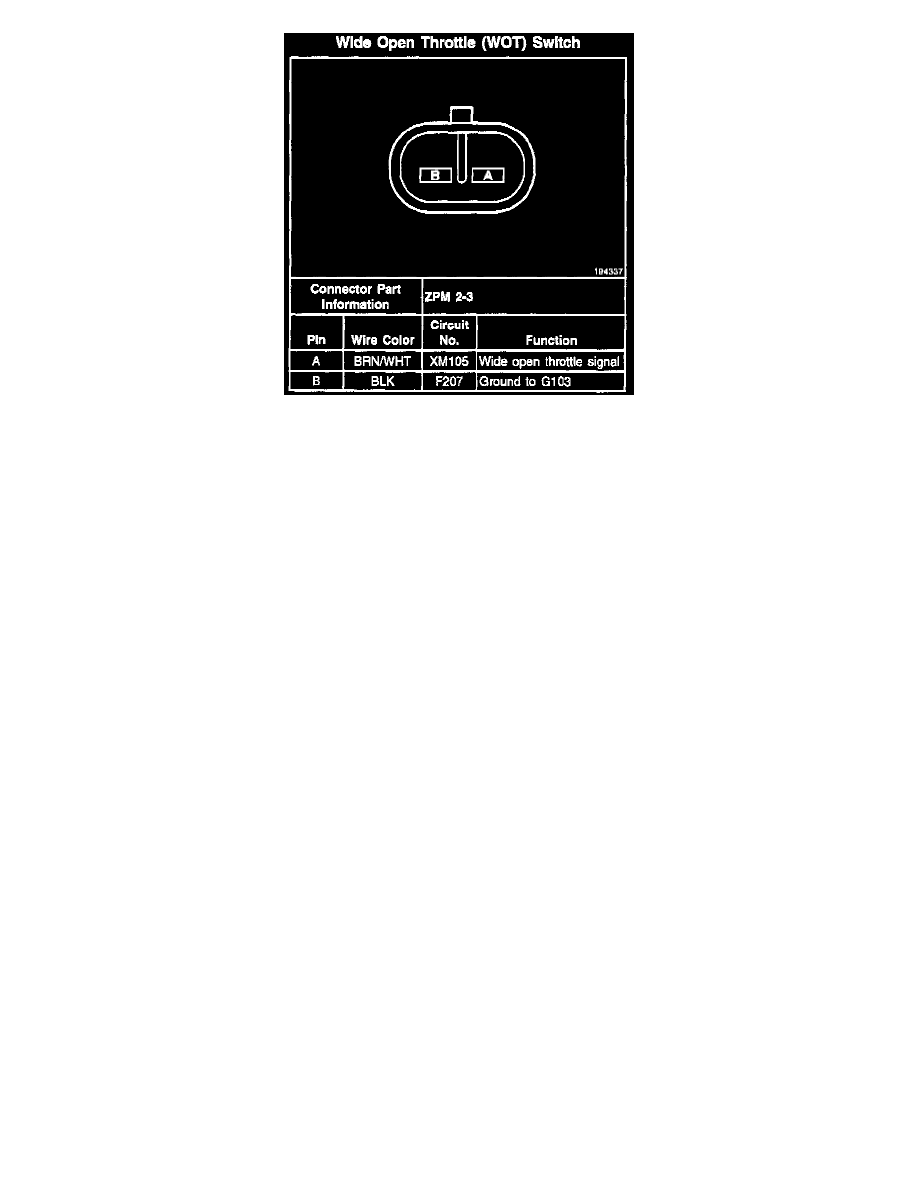

Wide Open Throttle (WOT) Switch: Locations

Attached to the throttle cable
