Catera V6-3.0L VIN R (1997)
Alternator: Service and Repair
Generator Overhaul
DISASSEMBLY PROCEDURE
Only the following generator components are serviceable:
^
The pulley (3)
^
The front bearing
^
The regulator
^
The rear cooling duct
If any of the following components need replacement, replace the generator:
^
The rear bearing
^
The rectifier bridge
^
The armature
^
The field coil
TOOLS REQUIRED
^
J 42072 Rear Brake Backing Plate Bolt Remover
^
J 35669 Strut Rod Nut Remover and Installer
Generator Overhaul: Disassembly Procedure
1. Remove the generator.
2. Hold the generator shaft using the J 42072 while loosening the pulley nut using the J 35669.
3. Remove the following pulley components:
^
The nut
^
The washer
^
The pulley
^
The spacer

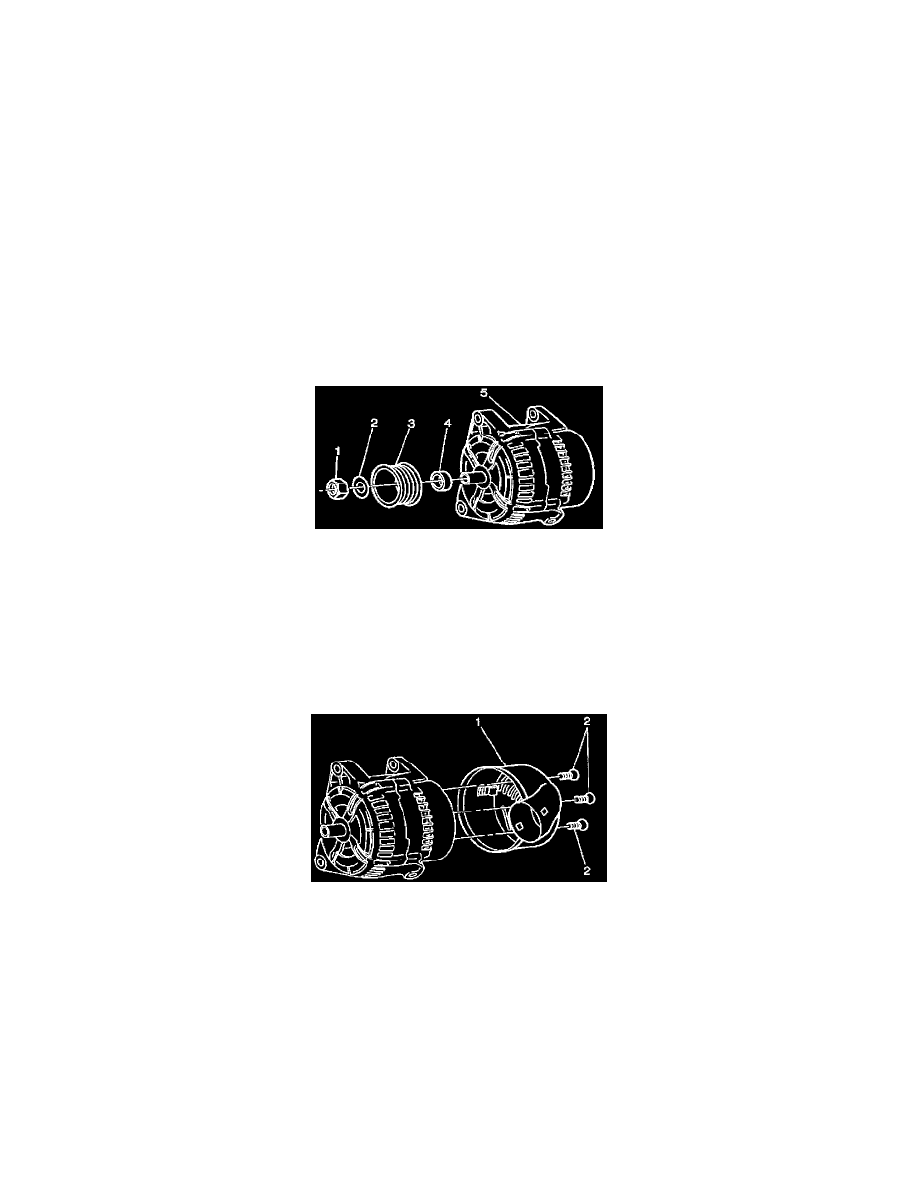

Generator Overhaul: Disassembly Procedure
4. Remove the cooling duct cap:
^
Remove the screws (2).
^
Remove the cap (1).
