Cadillac Workshop Service and Repair Manuals > Catera V6-3.0L VIN R (1997) > Starting and Charging | Power and Ground Distribution (Fuse, Relay Wiring) <--> [Power and Ground Distribution] | Relay Box | Component Information | Locations | Page 6175

Wiring Harness > < Relay Box View|Page 6174

Page 1

background image

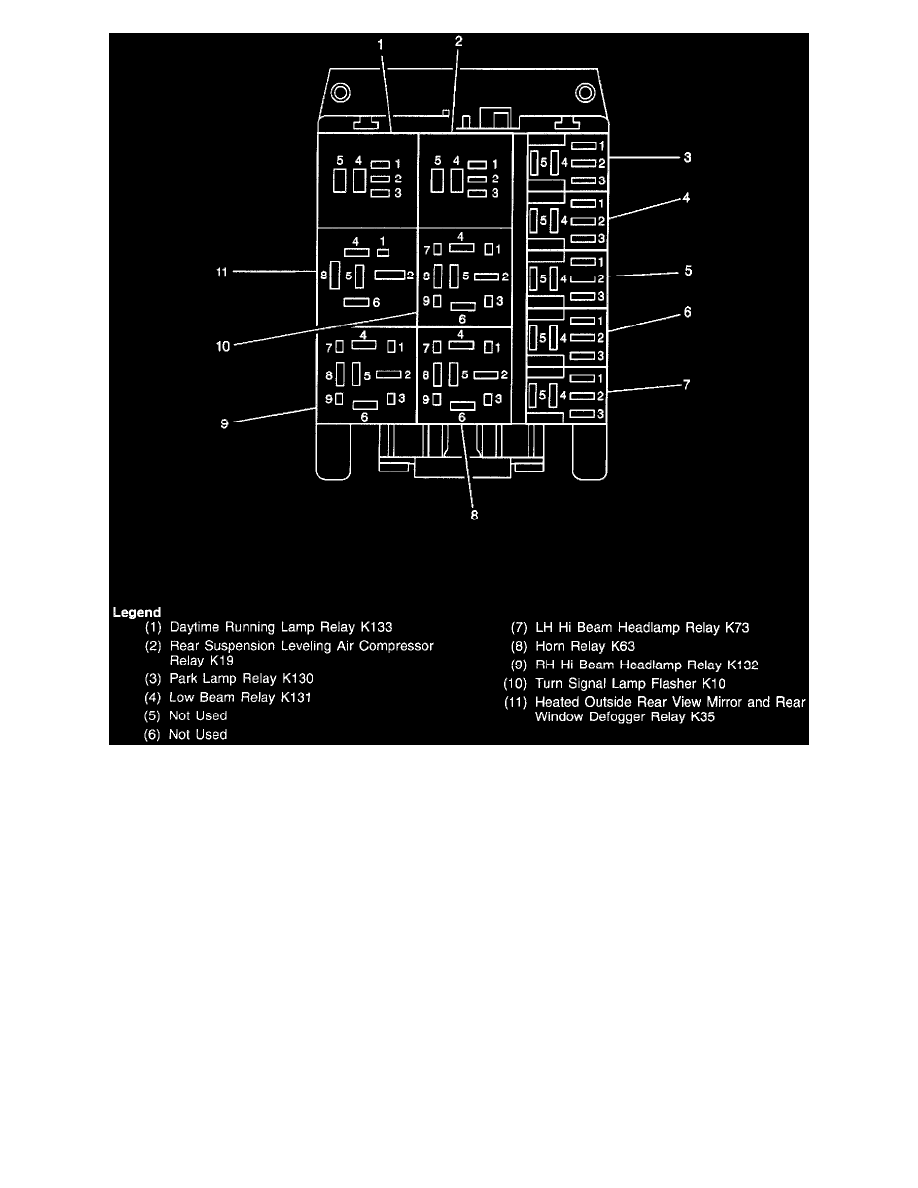

Fuse Block Details Schematics: Front View Of Relay Box

Starting and Charging
Power and Ground Distribution (Fuse, Relay Wiring) <--> [Power and Ground Distribution]
Relay Box / Locations
Page 6175

Wiring Harness > < Relay Box View|Page 6174
