Catera V6-3.0L VIN R (1997)

Page 1
background image

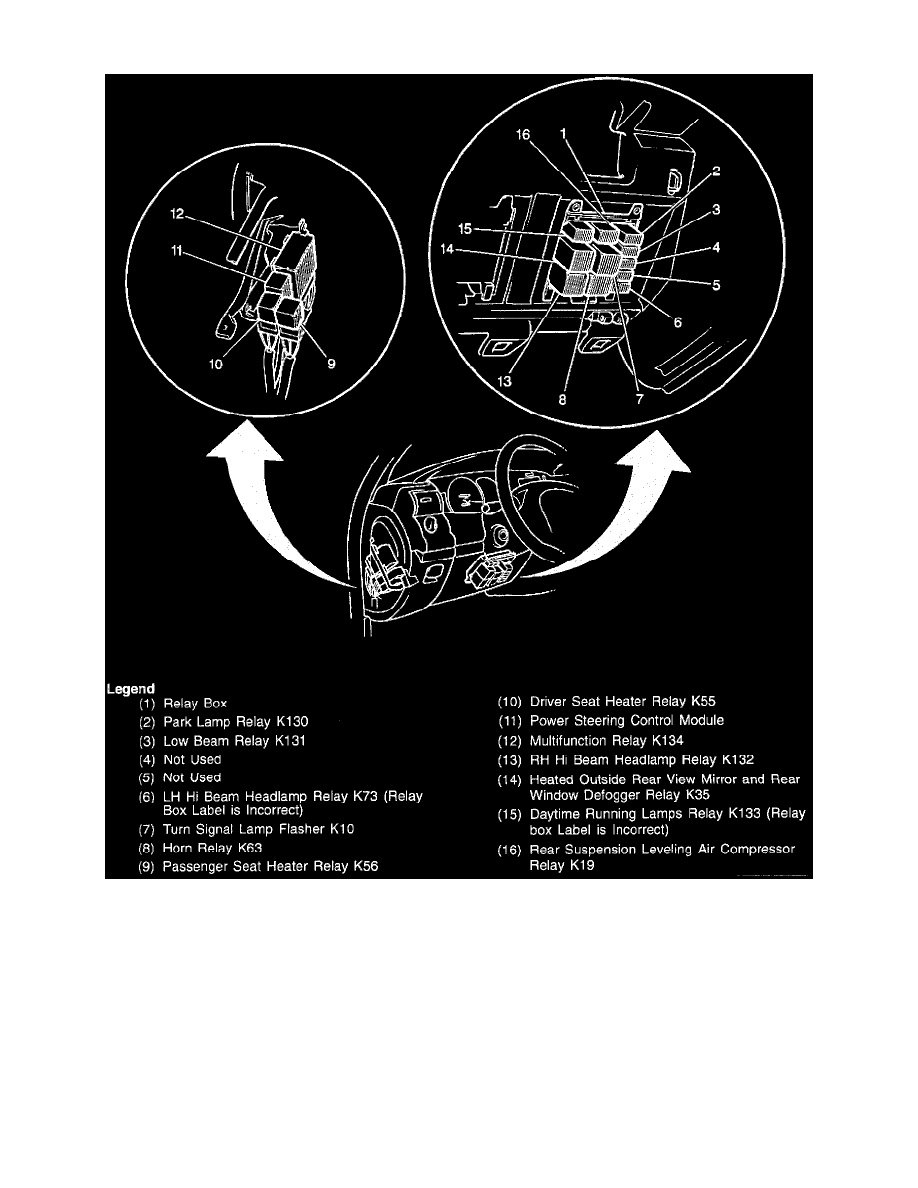

Compressor/Pump Relay: Locations

Relay Box

Lower I/P, to the RH side of the steering column, on the relay box, at position 2
