Catera V6-3.0L VIN R (1997)

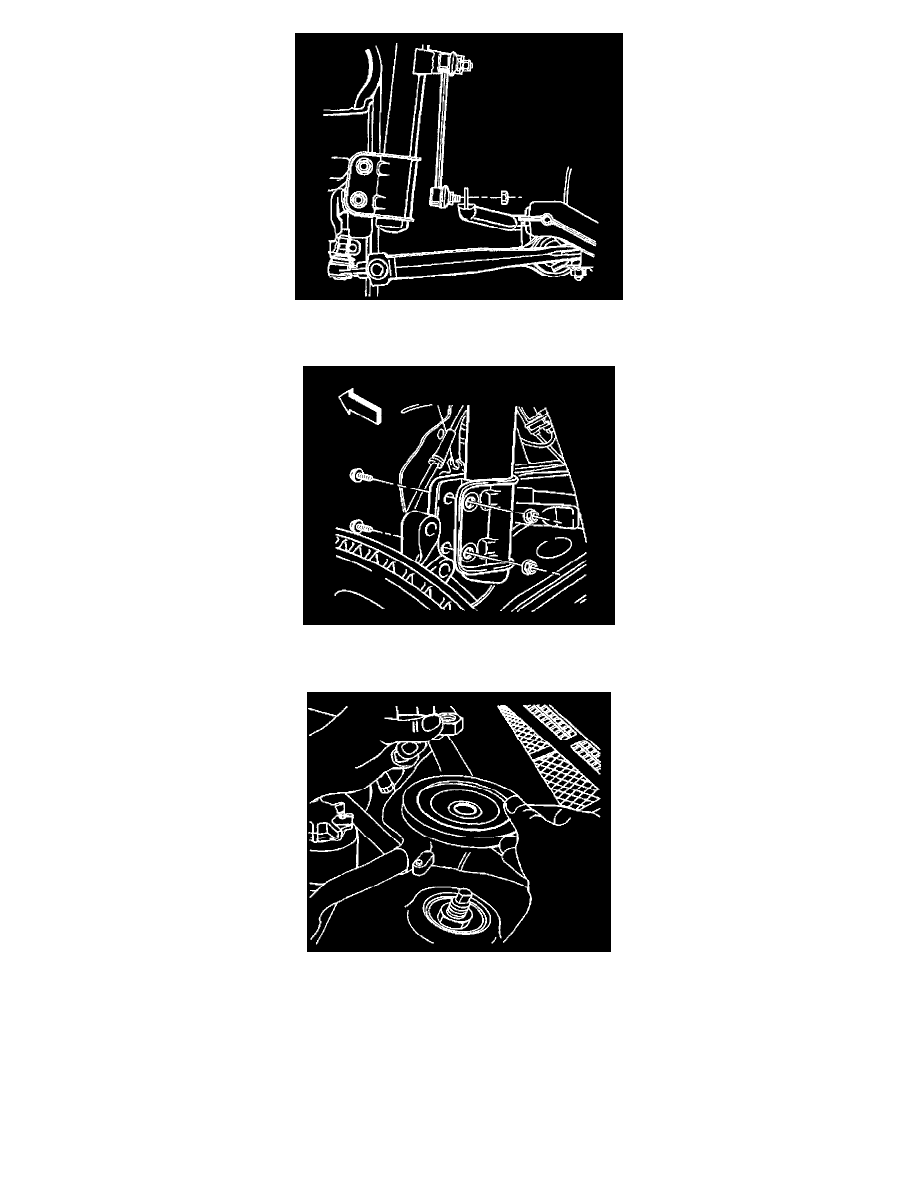

9. Remove the stabilizer shaft link nut.
10. Remove the stabilizer shaft link from the strut assembly.
11. Remove the lower strut mounting bolts from the steering knuckle.
12. Lower the vehicle.

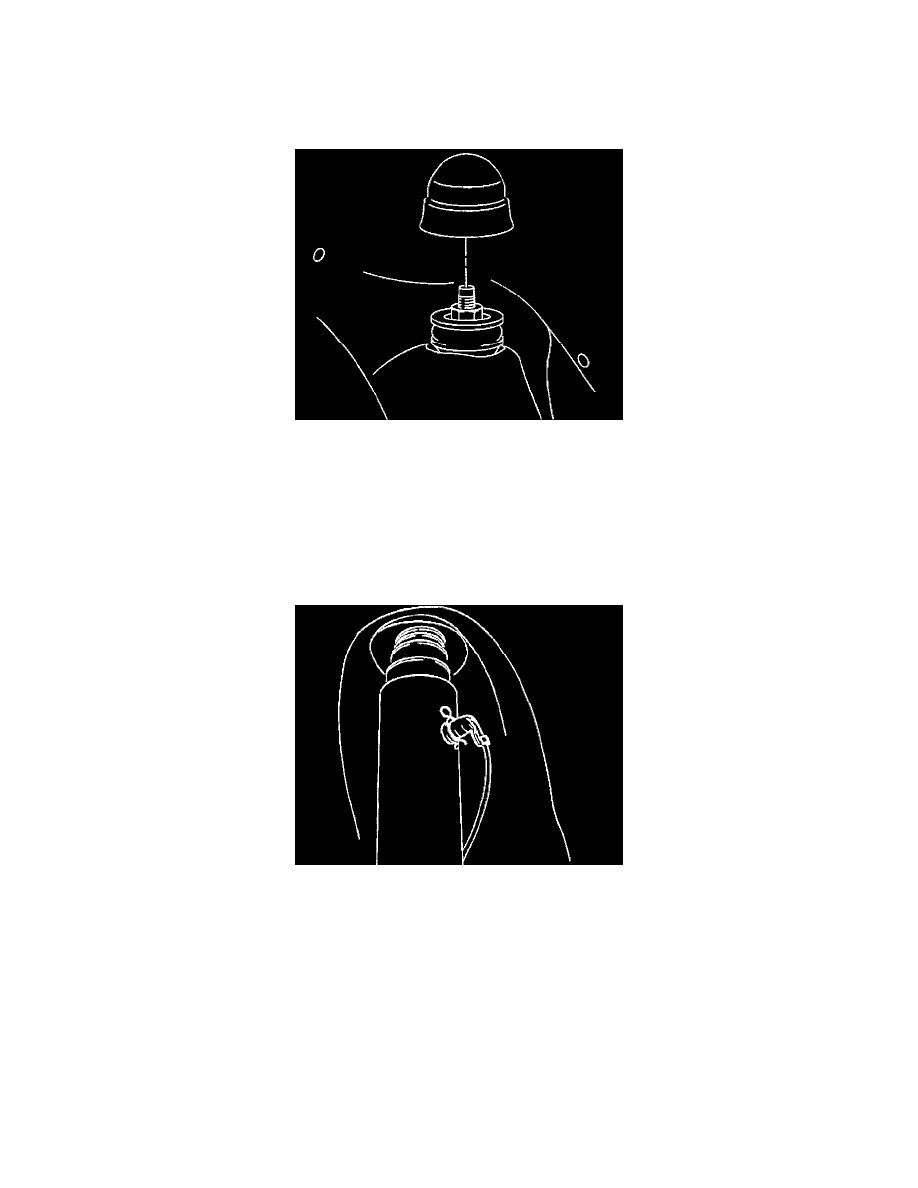

13. Remove the upper support plate protective cap.
14. Remove the upper support plate nut.
15. Remove the upper support plate.
16. Remove the strut assembly from the wheel well.
INSTALLATION PROCEDURE
1. Install the strut assembly into the strut tower through the wheel well.
2. Install the upper support plate.
3. Install the upper support nut.
