Wiper Relay: Locations

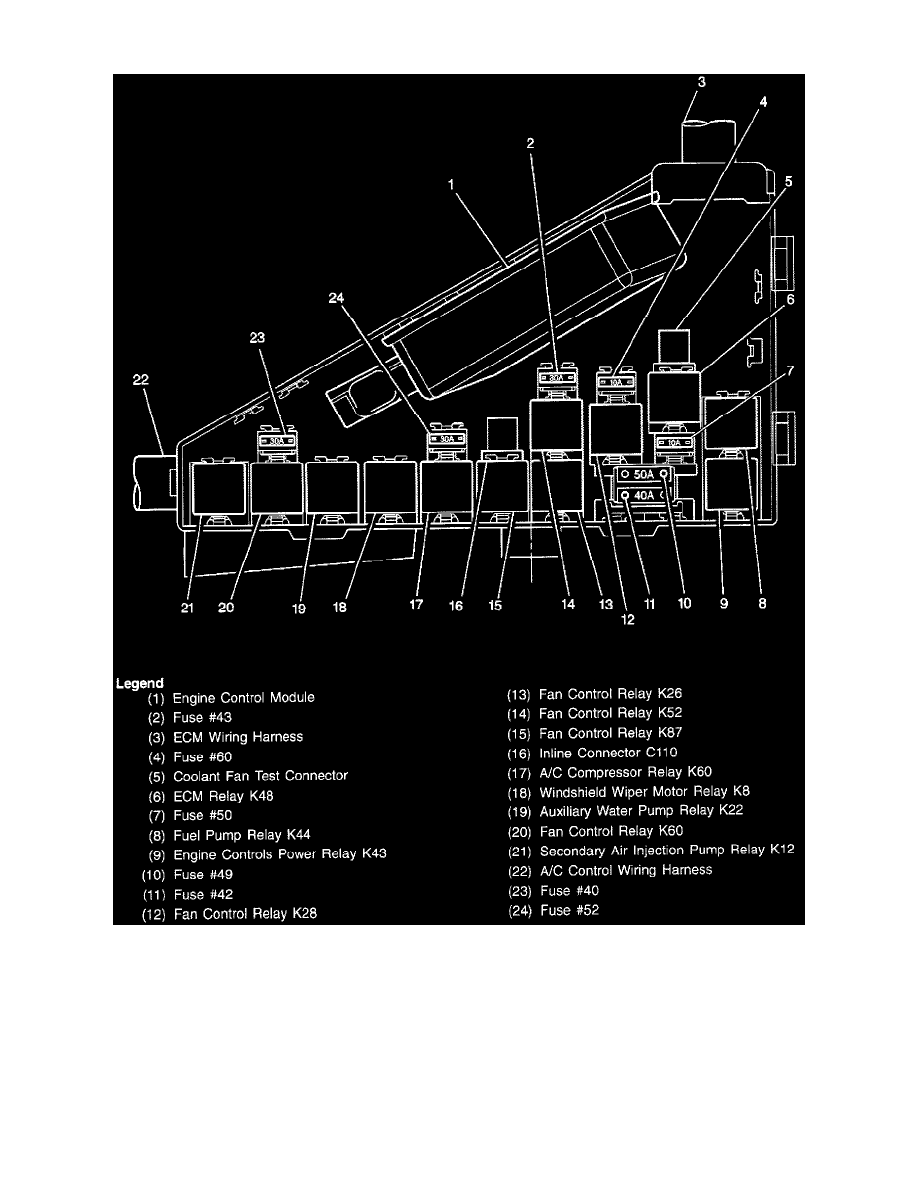

ECM Housing

LH front of the engine compartment, in the  ECM housing, at position 18
