DeVille V8-273 4.5L (1989)
Fender: All Technical Service Bulletins
Fender and Hood Hinges - New Type
NO.:
91-I-47
DATE:
April, 1991
GROUP:
10
CORP. NO.:
111513
SUBJECT:
INFORMATION ON FENDER REPLACEMENT ON 1989-1991 DE VILLES AND FLEETWOODS
The 1991 DeVille and Fleetwood fender and hood hinges were modified at VIN M421807 to facilitate assembly of these parts and the front end metal in
production. The current stock of service fenders at GMSPO reflects this change. Since there are no holes in the inner fender vertical wall, the old style
hood hinge cannot be used during fender replacement on cars built from 1989 up to the 1991 VIN breakpoint. The new style hood hinge and a
reinforcement bracket must be installed. For fender replacement use the following procedure:
1.
Install modified hood hinge to side rail assembly.
2.
Attach reinforcement mounting bracket to side rail with its tab against the hinge.
3.
Install fender using procedure from Service Information Manual.

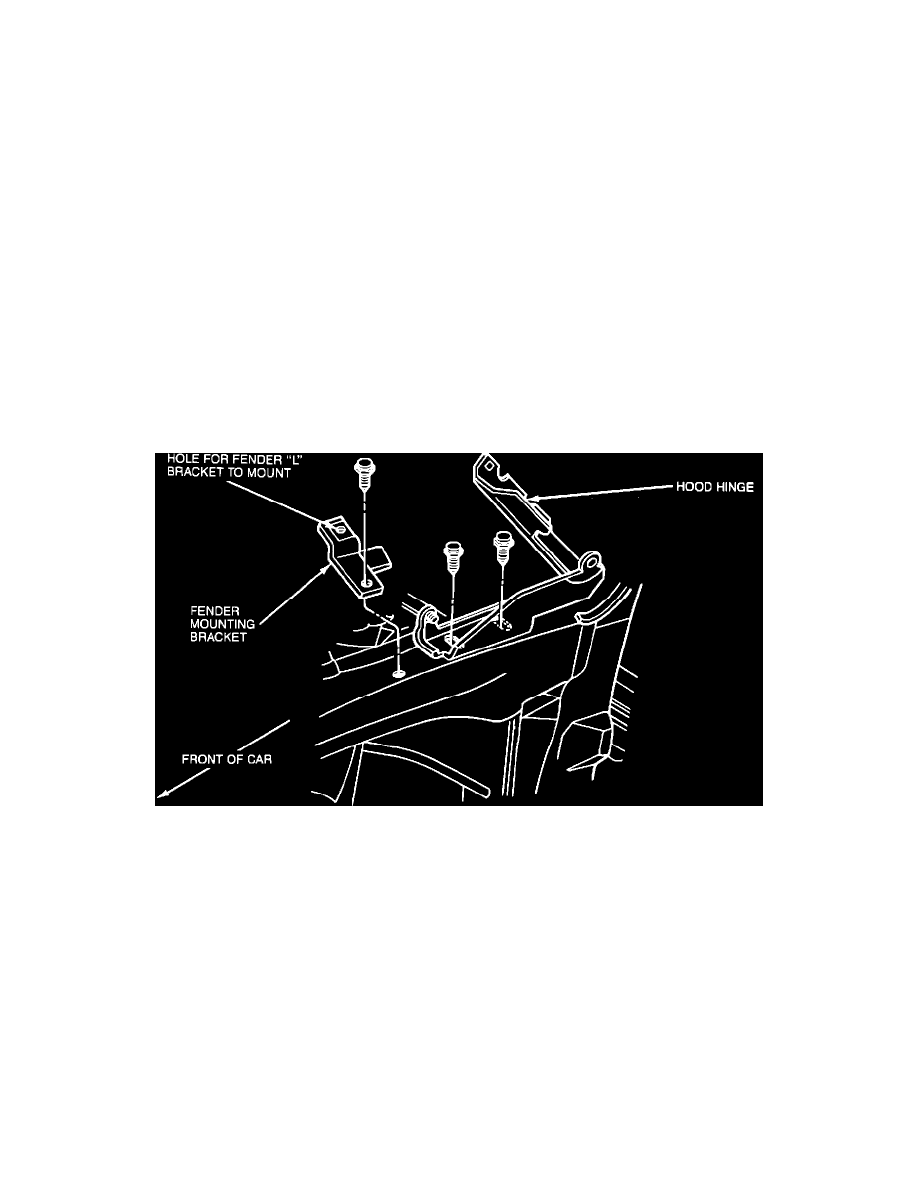

Figure 1 - Fender "L" Bracket Wing Section
NOTE: The fender "L" bracket has a wing section that attaches onto the reinforcement mounting bracket. For more detail refer to Figure 1.
Listed for reference are the part numbers:
LH
RH
Fender
25601113
25601114
Hood Hinge
25601111
25601112
Reinforcement Mounting Bracket
25601119
25601120
Parts are currently available from GMSPO.
