DeVille V8-273 4.5L (1989)

Page 1
background image

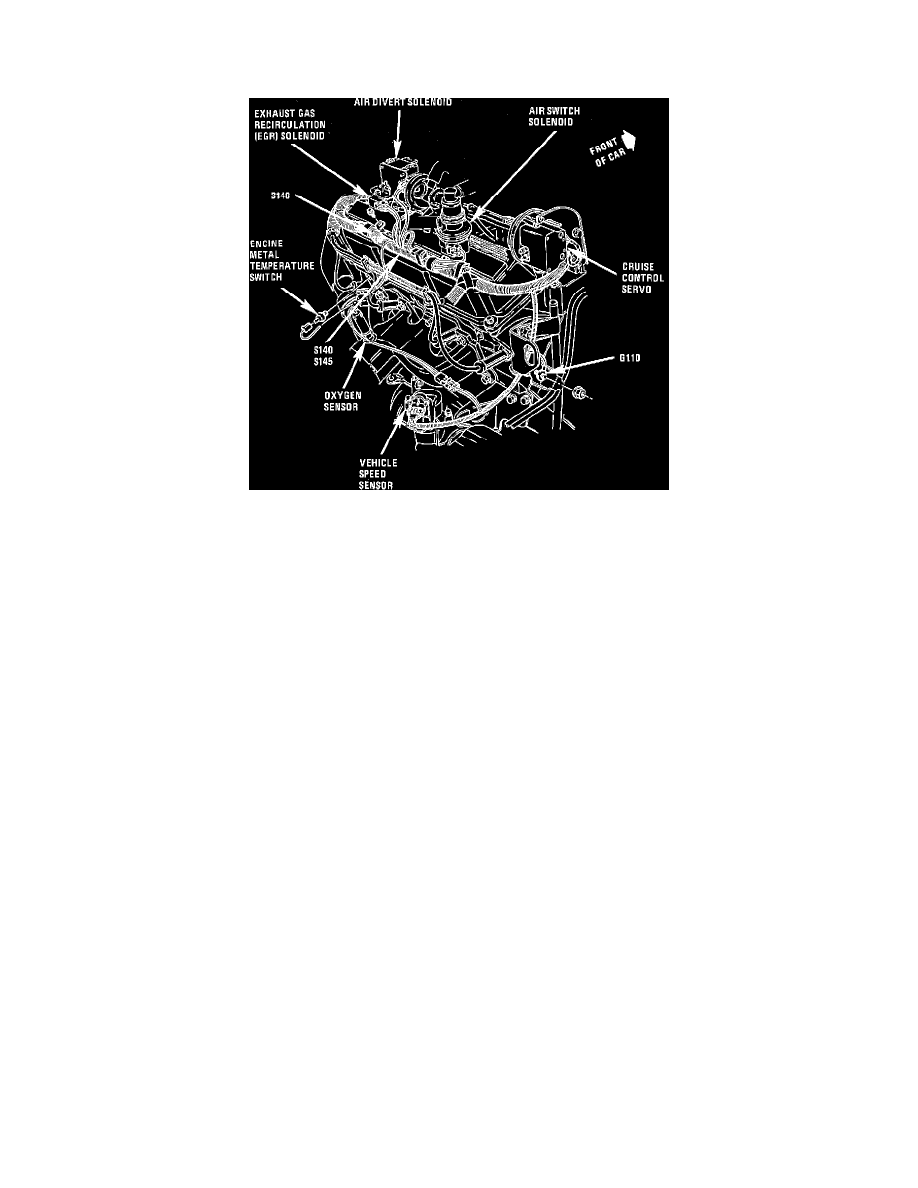

Air Diverter Solenoid: Locations
Air Divert Solenoid

AIR Divert Solenoid.

 RH Rear Of Engine

Applicable to:  DeVille & Fleetwood
