Drive Belt: Diagrams (page 2 of 2)
- Make
- Cadillac
- Model
- DeVille
- Engine
- V8-4.6L VIN 9
- Year
- 1995
- Section
- Drive Belt
MaintenanceDiagrams · page 2 of 2
Drive Belt: Service and Repair

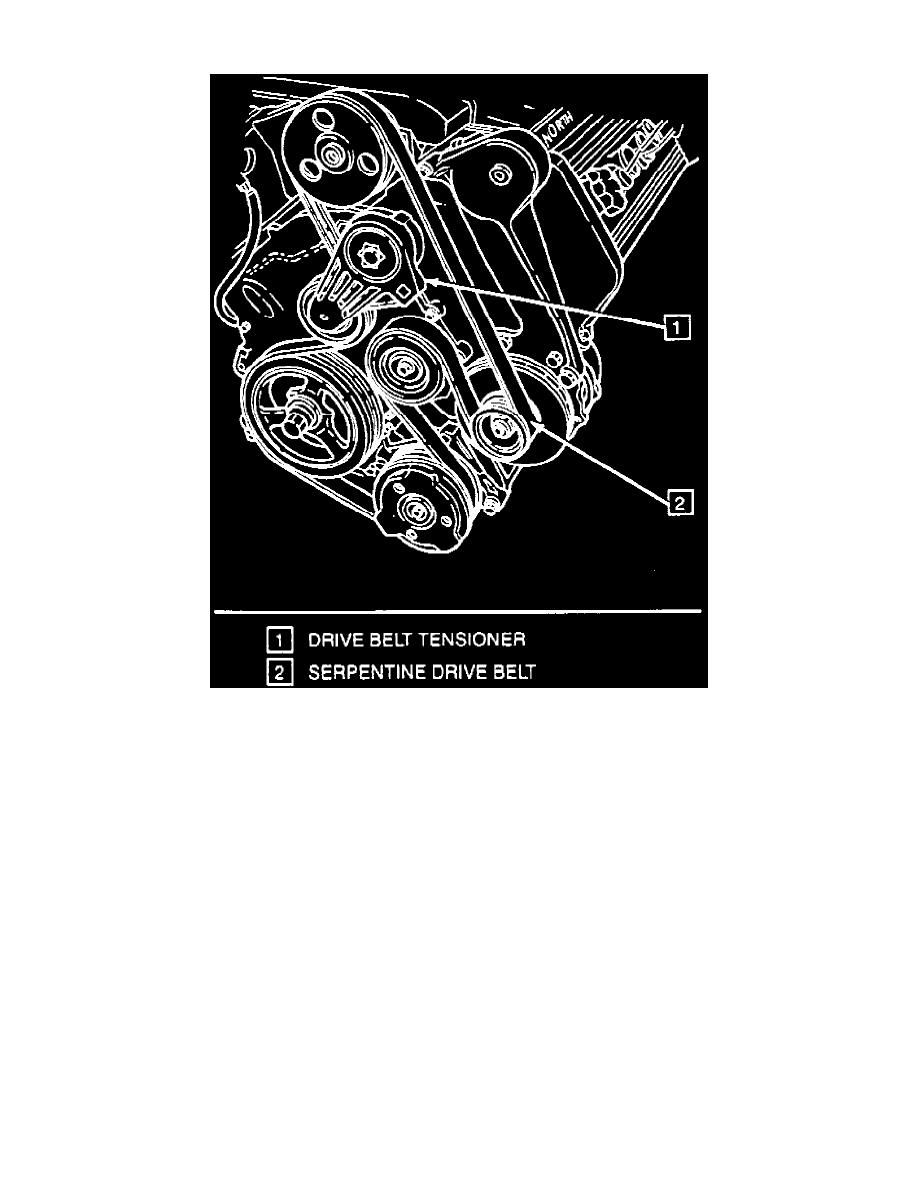

Fig. 24 Serpentine Drive Belt Routing
1. Rotate drive belt tensioner mechanism upward, away from drive belt using a 1/2 inch breaker bar.
2. Remove serpentine drive belt.
3. Reverse procedure to install. Refer to Fig. 24, for serpentine drive belt routing.
