Escalade EXT V8-6.0L VIN N (2004)

  • Body and Frame
  • Seats
  • Power Seat Motor Position Sensor
  • Component Information
  • Diagrams
  • Seat Lumbar Motor/Position Sensor - Driver

Page 1
background image

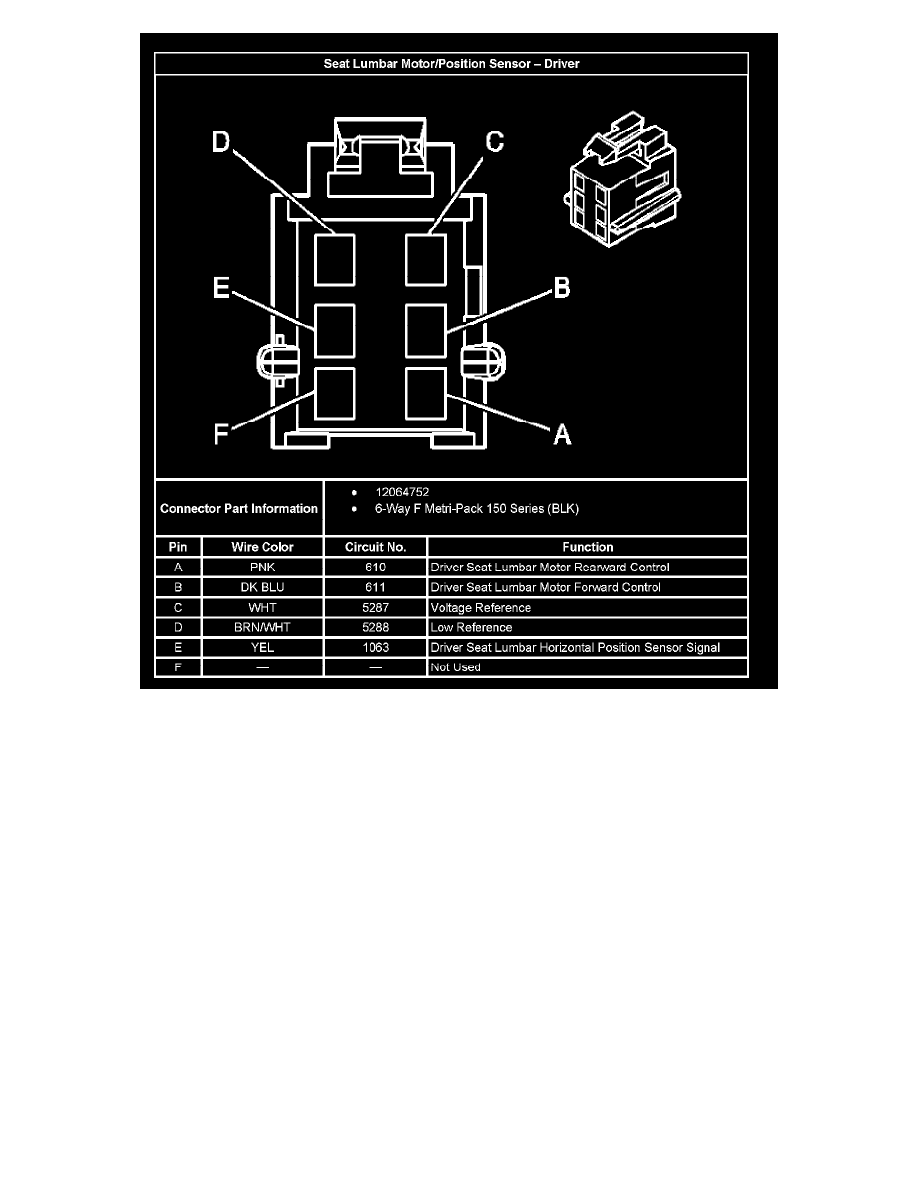

Seat Lumbar Motor/Position Sensor - Driver

  • Body and Frame
  • Seats
  • Power Seat Motor Position Sensor
  • Component Information
  • Diagrams
  • Seat Lumbar Motor/Position Sensor - Driver
