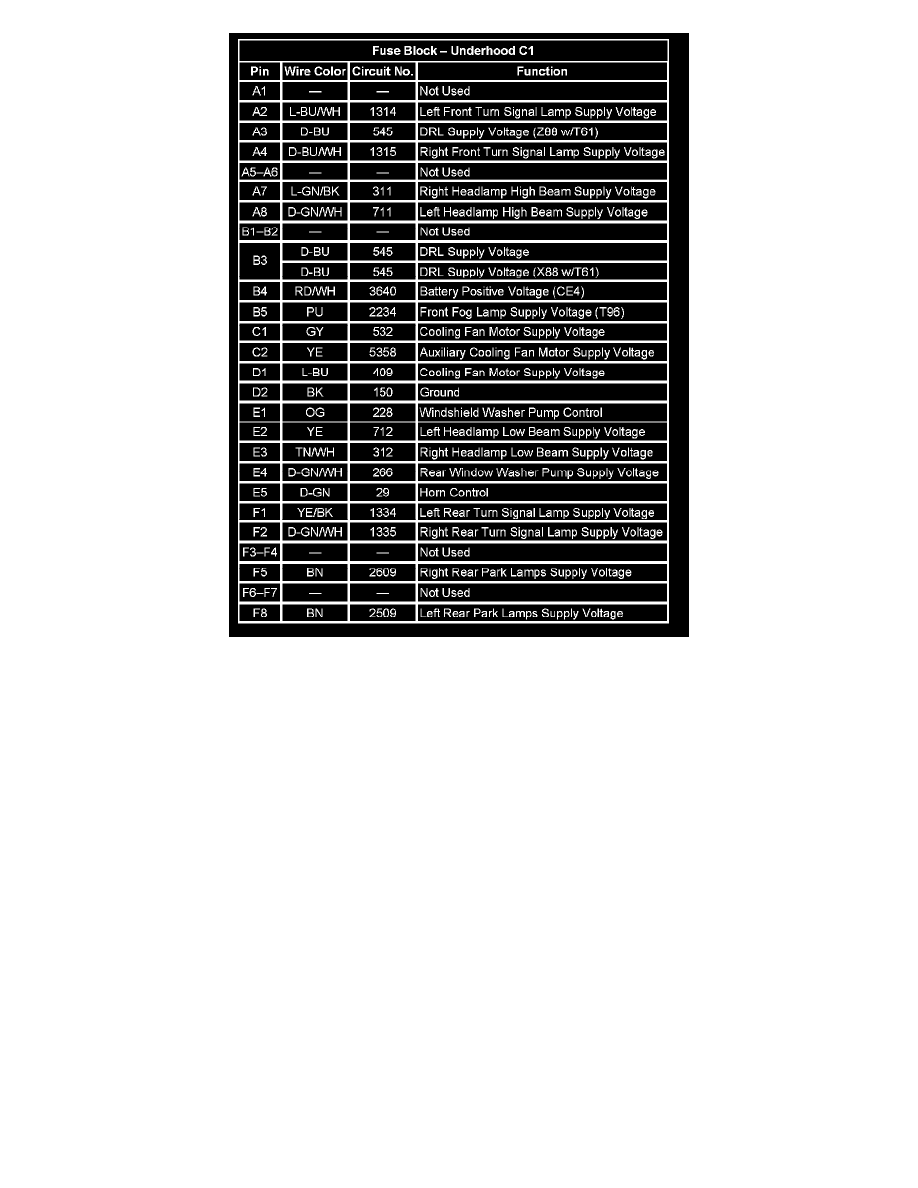

Fuse Block - Underhood C1 (Pin A1 To F8)

Maintenance
Fuses and Circuit Breakers
Fuse Block / Diagrams / Diagram Information and Instructions
Page 4239
