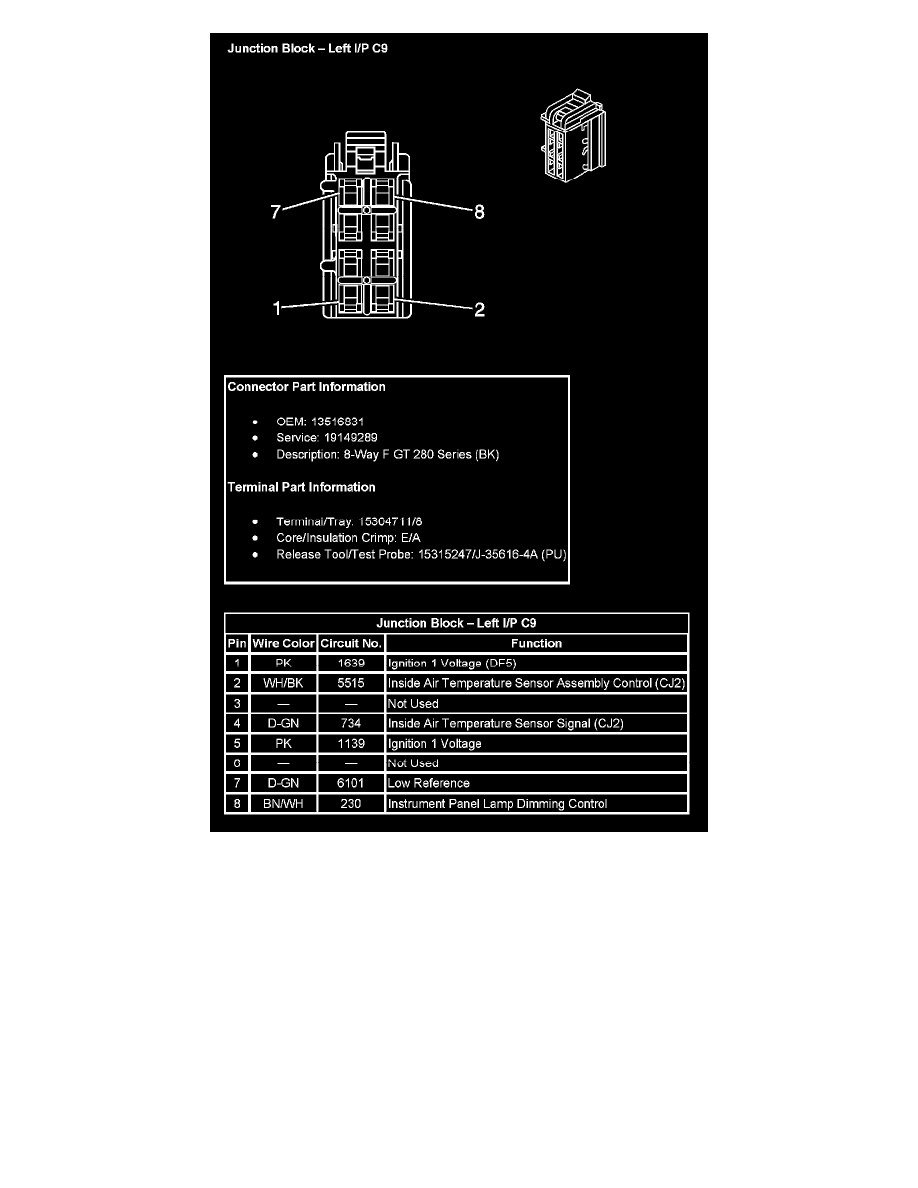

Junction Block - Left I/P C9

Maintenance
Fuses and Circuit Breakers
Fuse Block / Diagrams / Diagram Information and Instructions
