Fleetwood FWD V8-300 4.9L (1993)
Radio/Stereo: Service and Repair
Radio Replacement

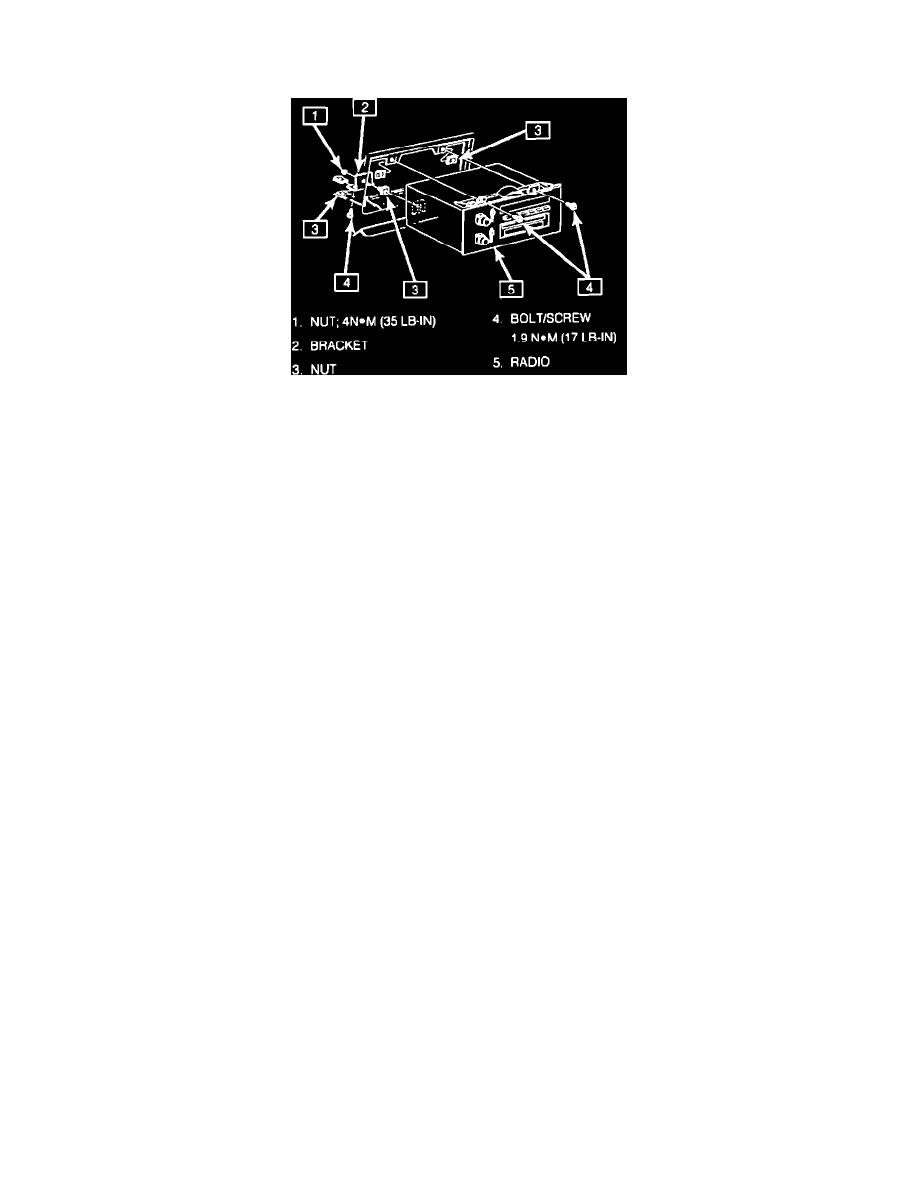

Fig. 34 Radio Installation. DeVille & Fleetwood
Disable the Supplemental Inflatable Restraint (SIR) system as described in MAINTENANCE PROCEDURES/AIRBAG SYSTEM
DISARMING prior to working on or near the steering column. After completion of repairs, rearm airbag system as described under
MAINTENANCE PROCEDURES/AIRBAG SYSTEM DISARMING.
1.
Disconnect battery ground cable.
2.
Remove radio trim plate, Fig. 34.
3.
Open ashtray and remove one screw from rear support bracket.
4.
Remove two screws from front of radio, then pull radio straight out and disconnect electrical connectors and antenna.
5.
Remove four bracket retaining nuts and brackets.
6.
Reverse procedure to install.
