Page 2

background image

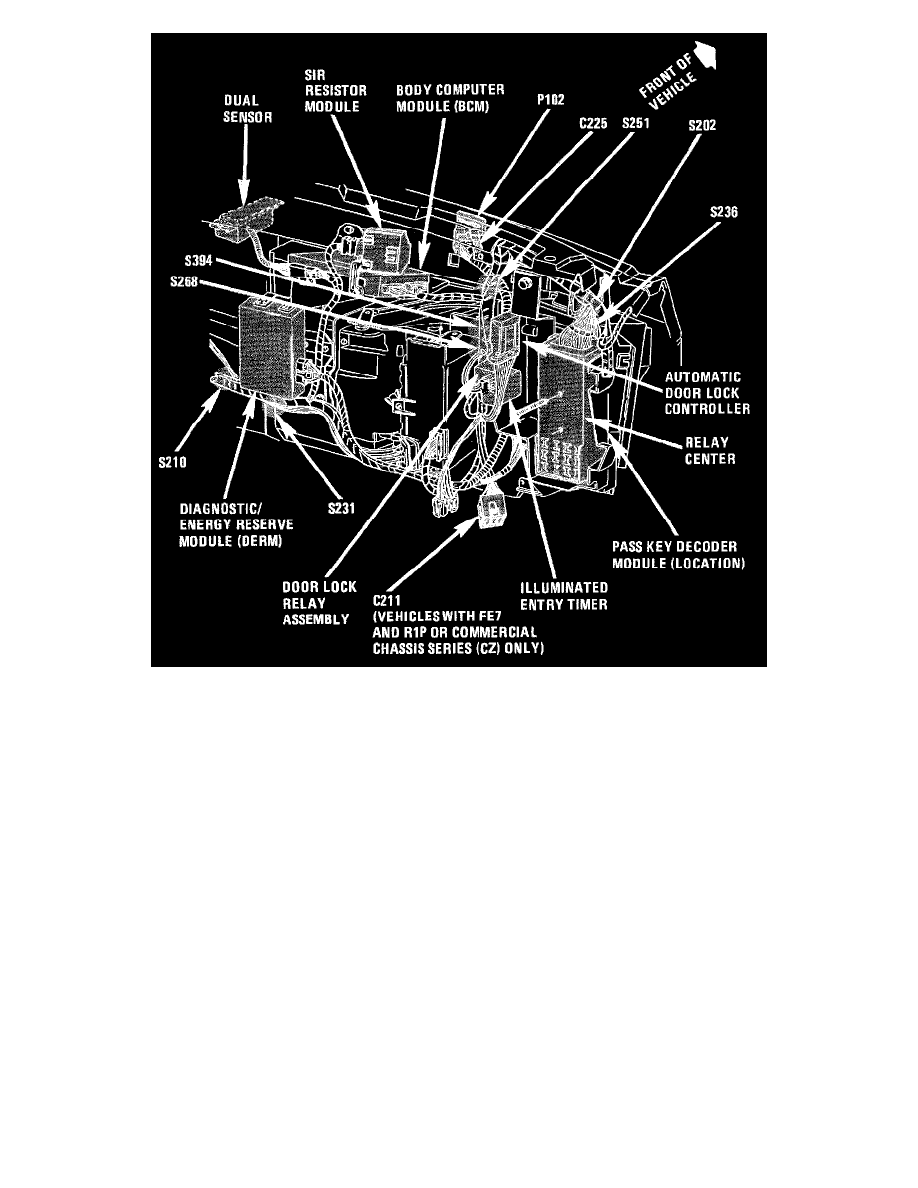

Behind RH Side Of I/P

Relay Center Location

Powertrain Management
Relays and Modules - Powertrain Management
Relays and Modules - Fuel Delivery and Air Induction / Fuel Pump Relay / Locations
Page 2307
