Seville V8-4.9L VIN B (1995)

  • Relays and Modules
  • Relays and Modules - Instrument Panel
  • Audible Warning Device Control Module
  • Component Information
  • Locations
  • Component Locations

Page 1
background image

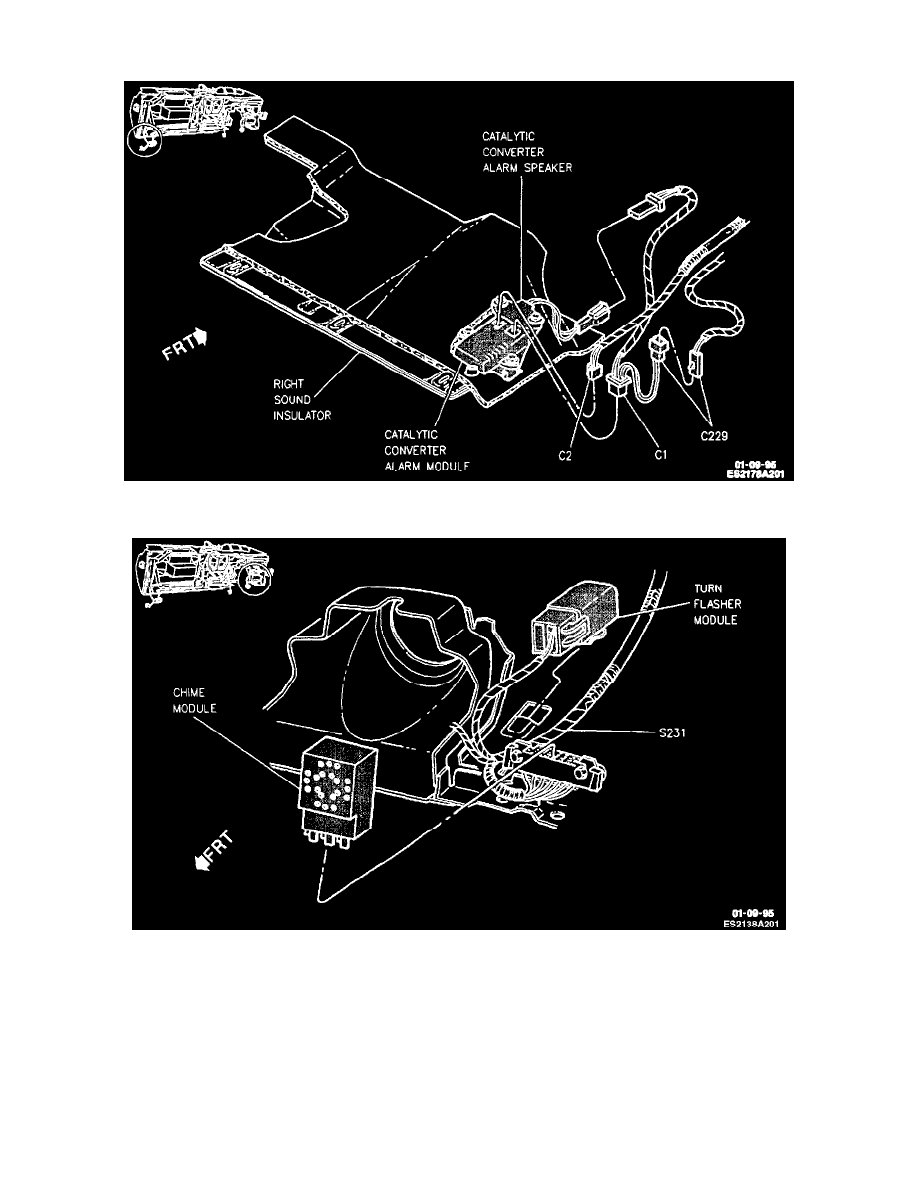

Audible Warning Device Control Module: Component Locations

Below RH Side Of I/P

Behind I/P LH Of Steering Column
