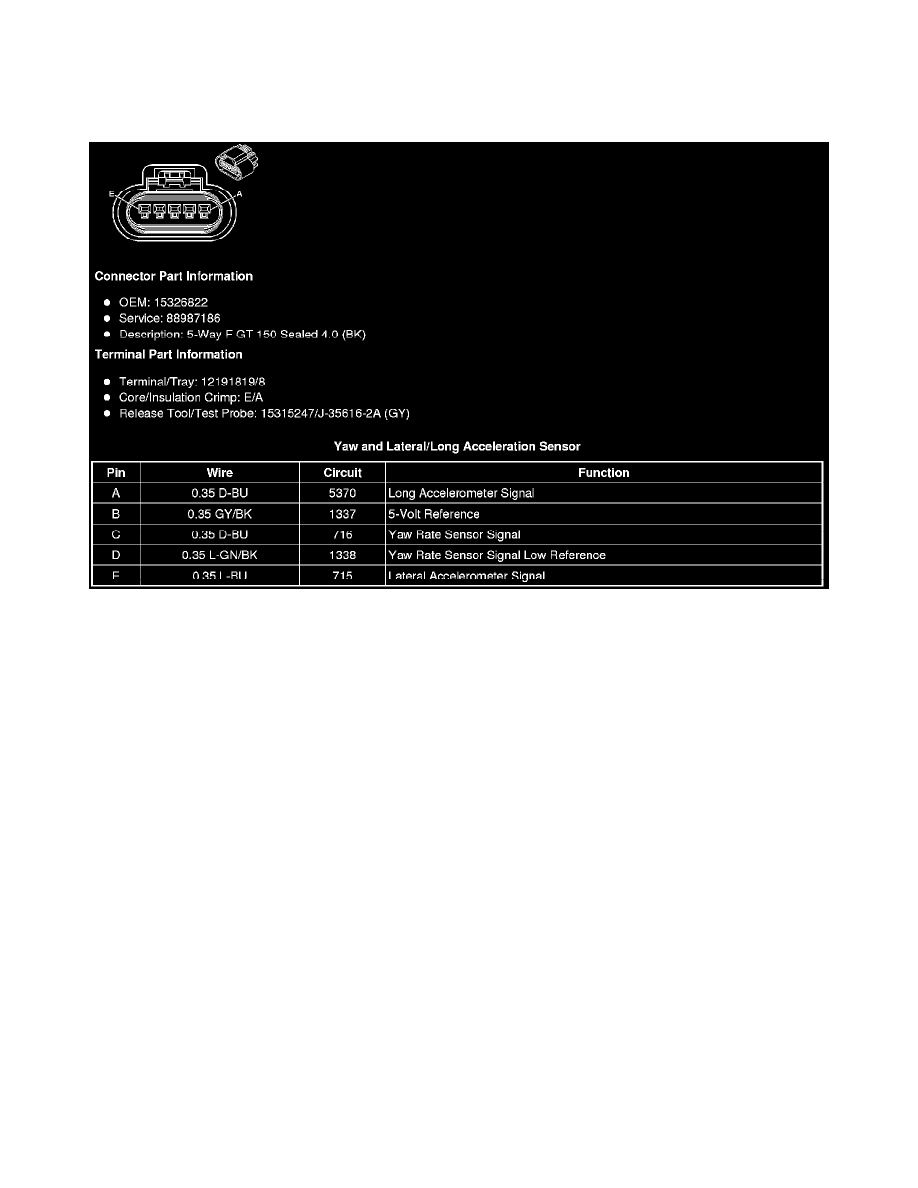

Acceleration/Deceleration Sensor: Diagrams

Component Connector End Views

Yaw and Lateral/Long Acceleration Sensor

Brakes and Traction Control
Antilock Brakes / Traction Control Systems
Acceleration/Deceleration Sensor
Component Information
Diagrams
