SRX AWD V6-3.6L (2008)
Air Door Actuator / Motor: Locations
Instrument Panel/Center Console Component Views

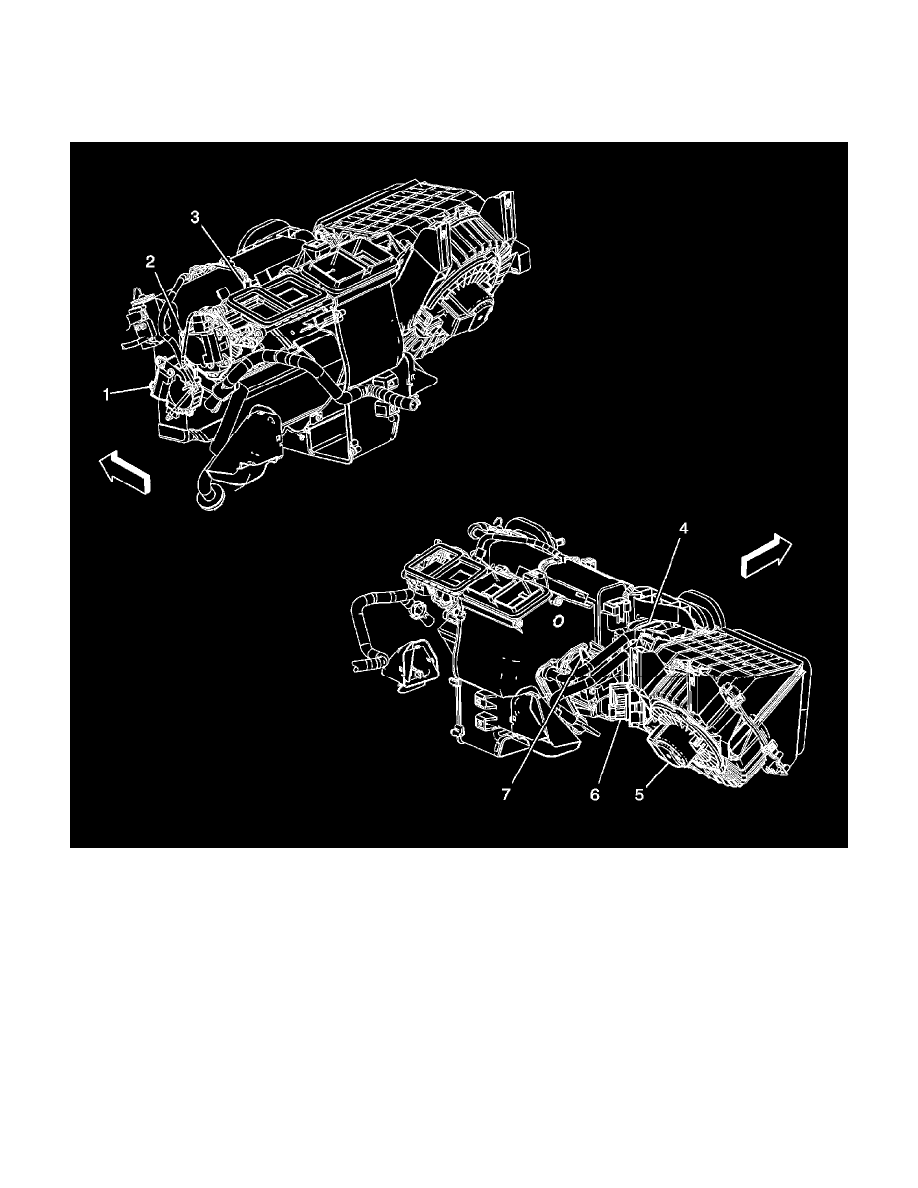

HVAC Module Components
1 - Air Temperature Actuator - Left
2 - Mode Actuator
3 - Evaporative Temperature Sensor
4 - Recirculation Actuator
5 - Blower Motor
6 - Blower Motor Control Module
7 - Air Temperature Actuator - Right
