STS RWD V8-4.6L (2007)
Timing Component Alignment Marks: Locations

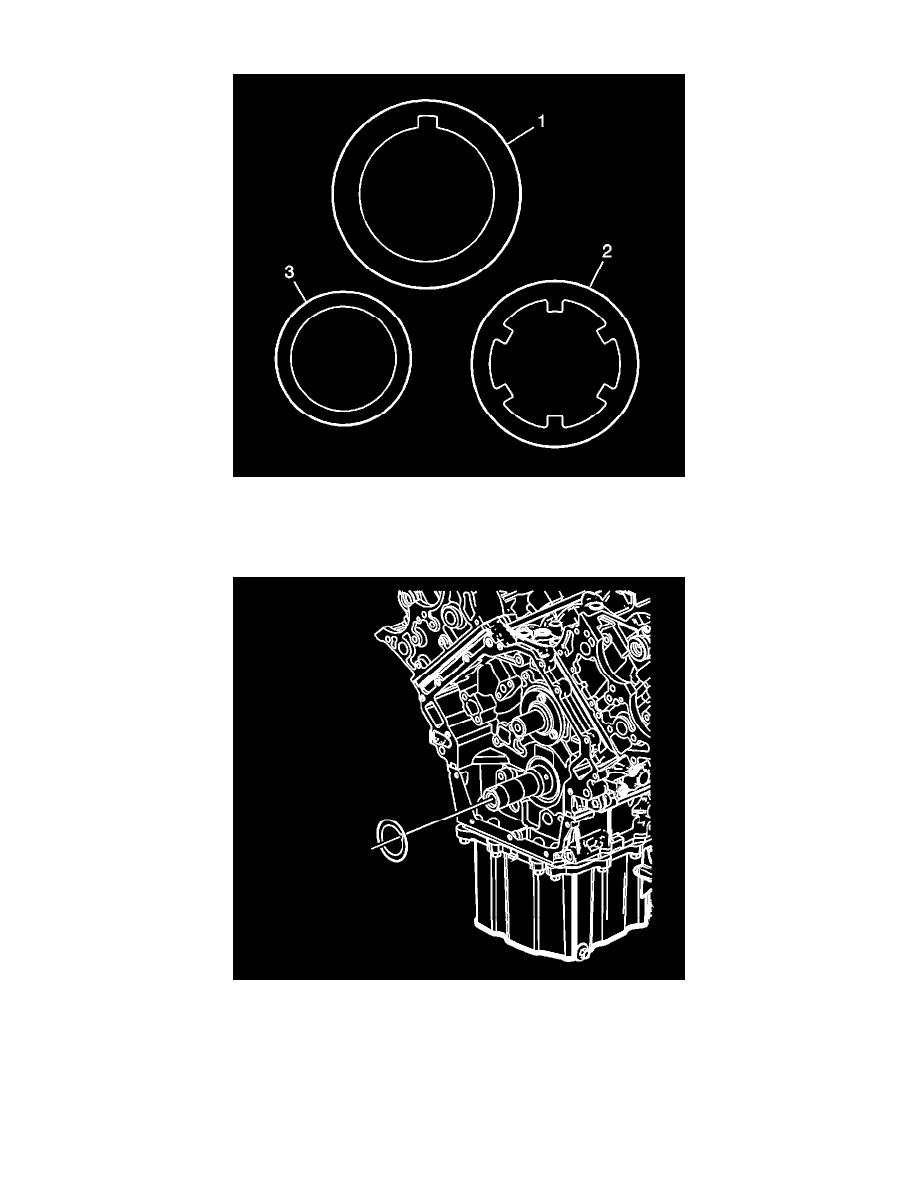

Important: Ensure the proper friction washer is installed in the correct position.
1. Select the crankshaft to crankshaft sprocket friction washer (1). The outer diameter is 63.5 mm (2.5000 in), an inner diameter of 45.25 mm (1.7815
in) and a notch to clear the crankshaft pin.
2. Install the crankshaft to crankshaft sprocket friction washer.
