STS RWD V8-4.6L (2007)
Ignition Coil: Locations
Engine Controls Component Views

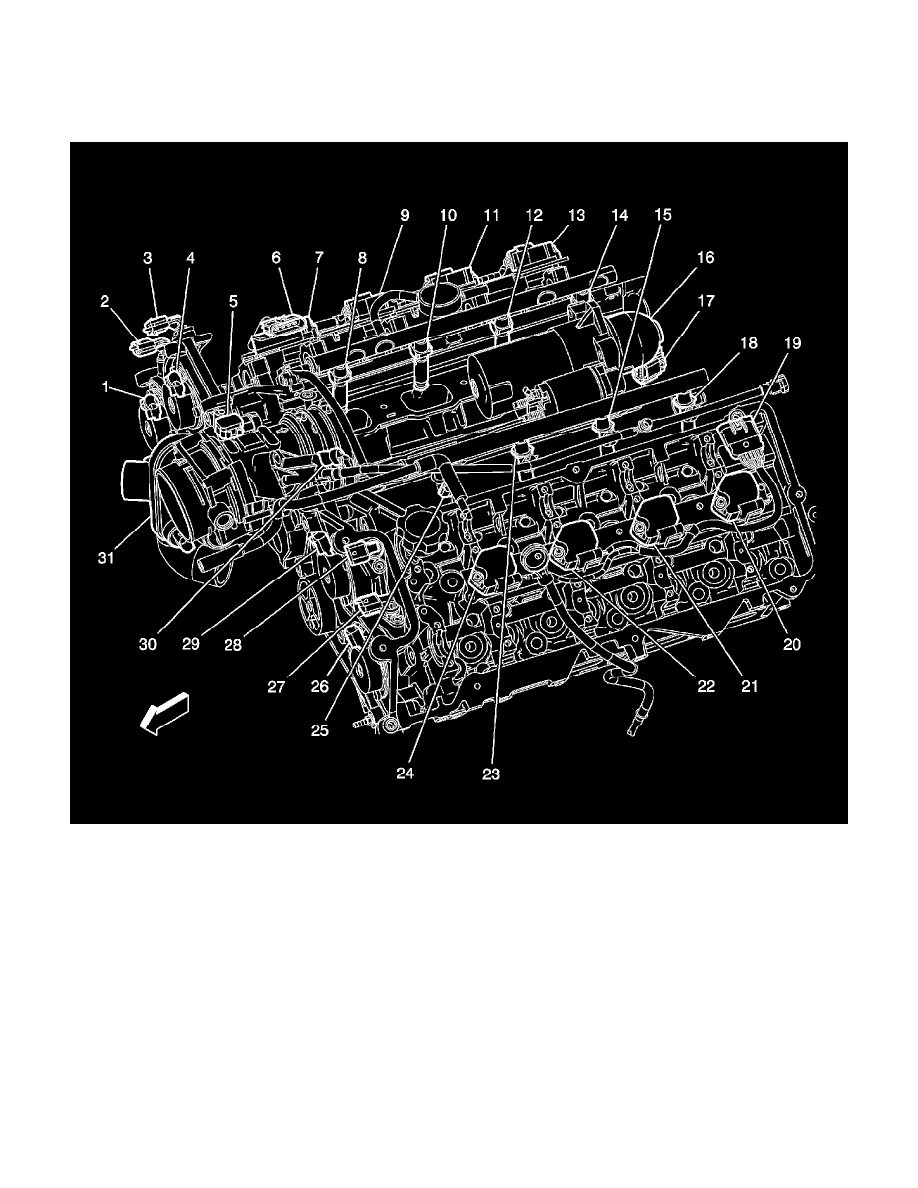

Top of the Engine (LH2)
1 - Camshaft Position (CMP) Actuator Solenoid Bank 1 Exhaust
2 - Camshaft Position (CMP) Sensor Bank 1 Exhaust
3 - Camshaft Position (CMP) Sensor Bank 1 Intake
4 - Camshaft Position (CMP) Actuator Solenoid Bank 1 Intake
5 - Manifold Absolute Pressure (MAP) Sensor
6 - C140
7 - Ignition Coil/Module 1
8 - Fuel Injector 1
9 - Ignition Coil/Module 3
10 - Fuel Injector 3
11 - Ignition Coil/Module 5
12 - Fuel Injector 5
13 - Ignition Coil/Module 7
14 - Fuel Injector 7
15 - Fuel Injector 6
16 - Starter
17 - C102
18 - Fuel Injector 8
