XLR V8-4.6L VIN A (2006)
Cabin Air Filter: Service and Repair
PASSENGER COMPARTMENT AIR FILTER REPLACEMENT
REMOVAL PROCEDURE

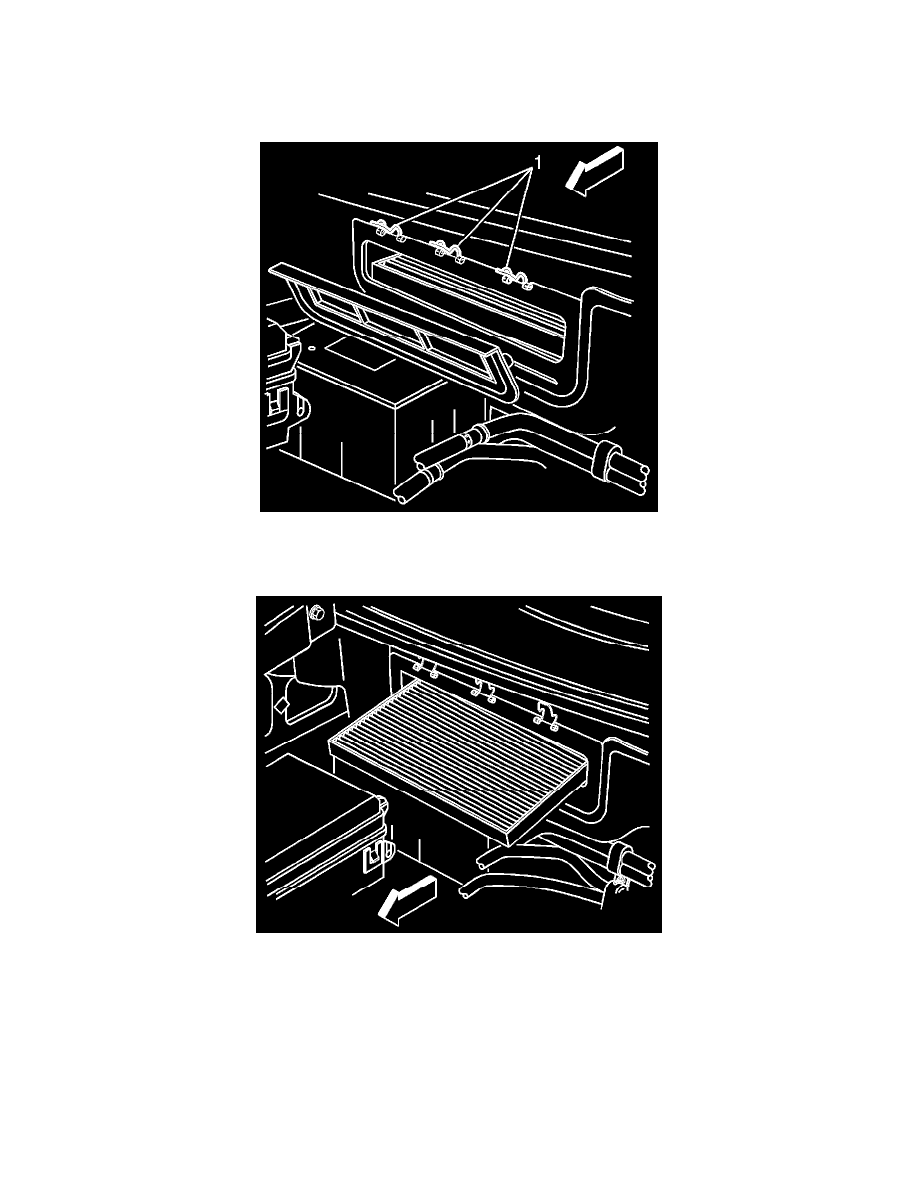

1. Disengage the passenger compartment air filter housing cover retainer clips (1).
2. Remove the passenger compartment air filter housing cover.
3. Remove the passenger compartment air filter from the housing.
INSTALLATION PROCEDURE
