Alignment: Description and Operation (page 6 of 7)
- Make
- Chevrolet
- Model
- Avalanche 4WD
- Engine
- V8-5.3L
- Year
- 2011
- Section
- Alignment
MaintenanceDescription and Operation · page 6 of 7

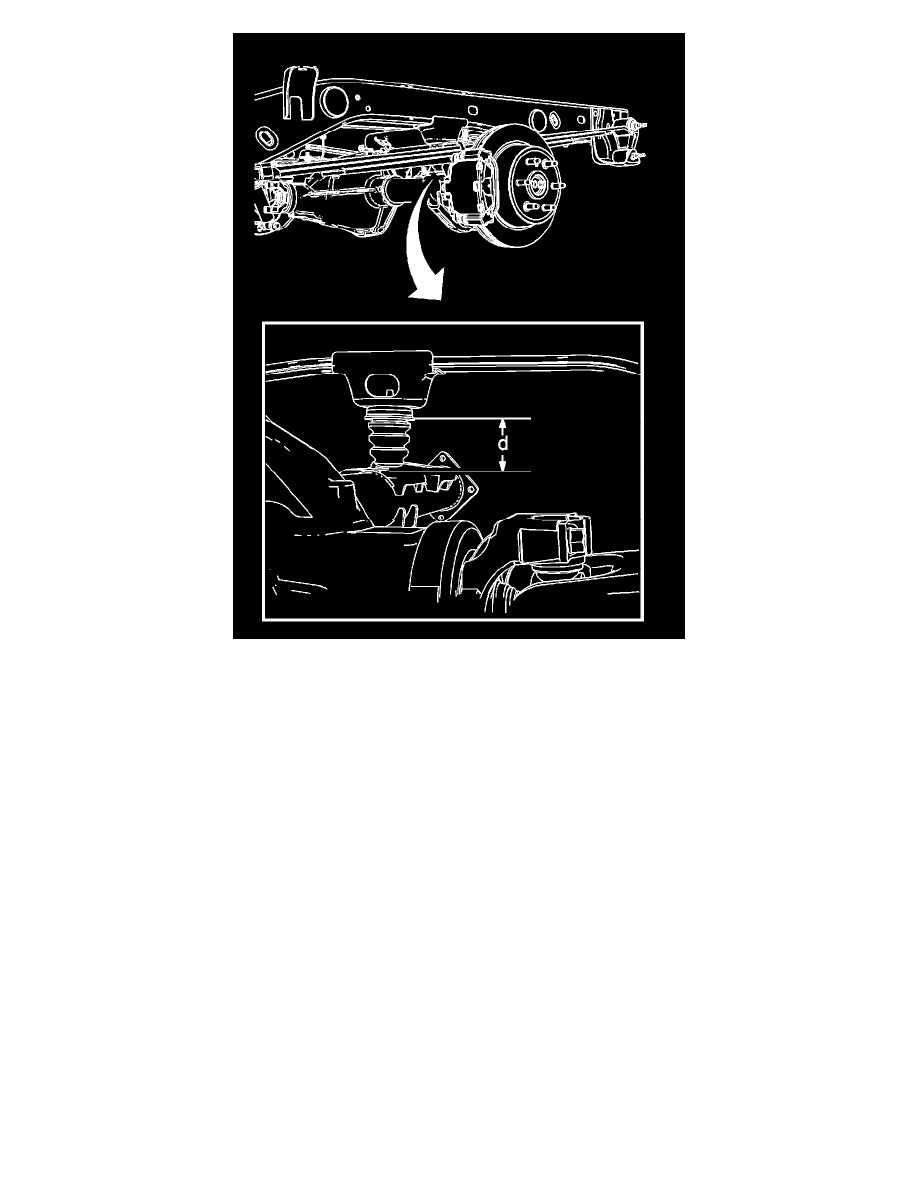

4. For the 1500 series Sierra/Denali/Silverado pick up trucks, measure the (D) height from the jounce bumper cup to the rear axle pad. Refer to Trim
Height Specifications See: Specifications/Mechanical Specifications/Suspension/System Specifications/Trim Height Specifications.
