Page 4
background image

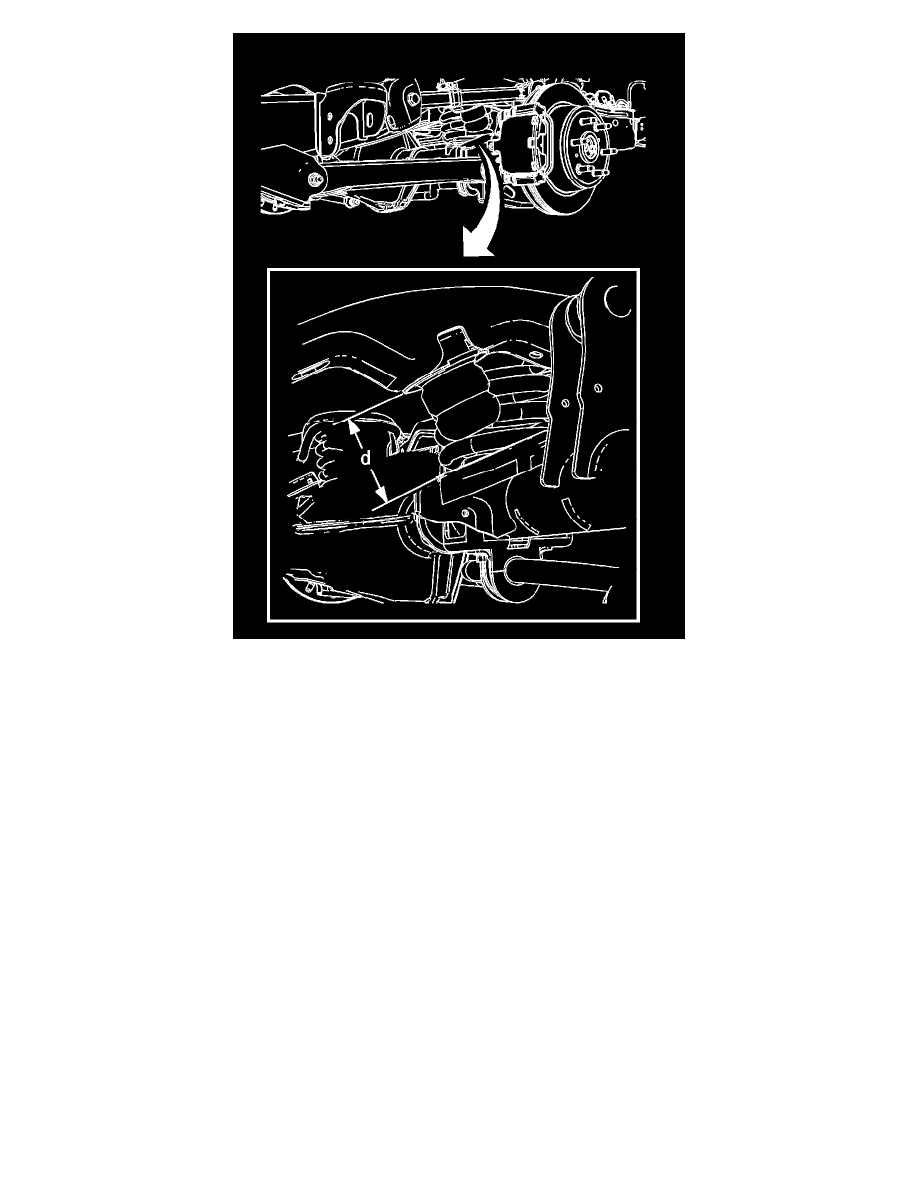

3. For the Avalanche/Escalade/Tahoe/Suburban/Yukon vehicles, measure the (D) height from the jounce bumper cup to the rear axle pad. Refer to

Trim Height Specifications   See: Specifications/Mechanical Specifications/Suspension/System Specifications/Trim Height Specifications.
