Camaro V8-6.2L (2010)
Headlamp Switch: Locations

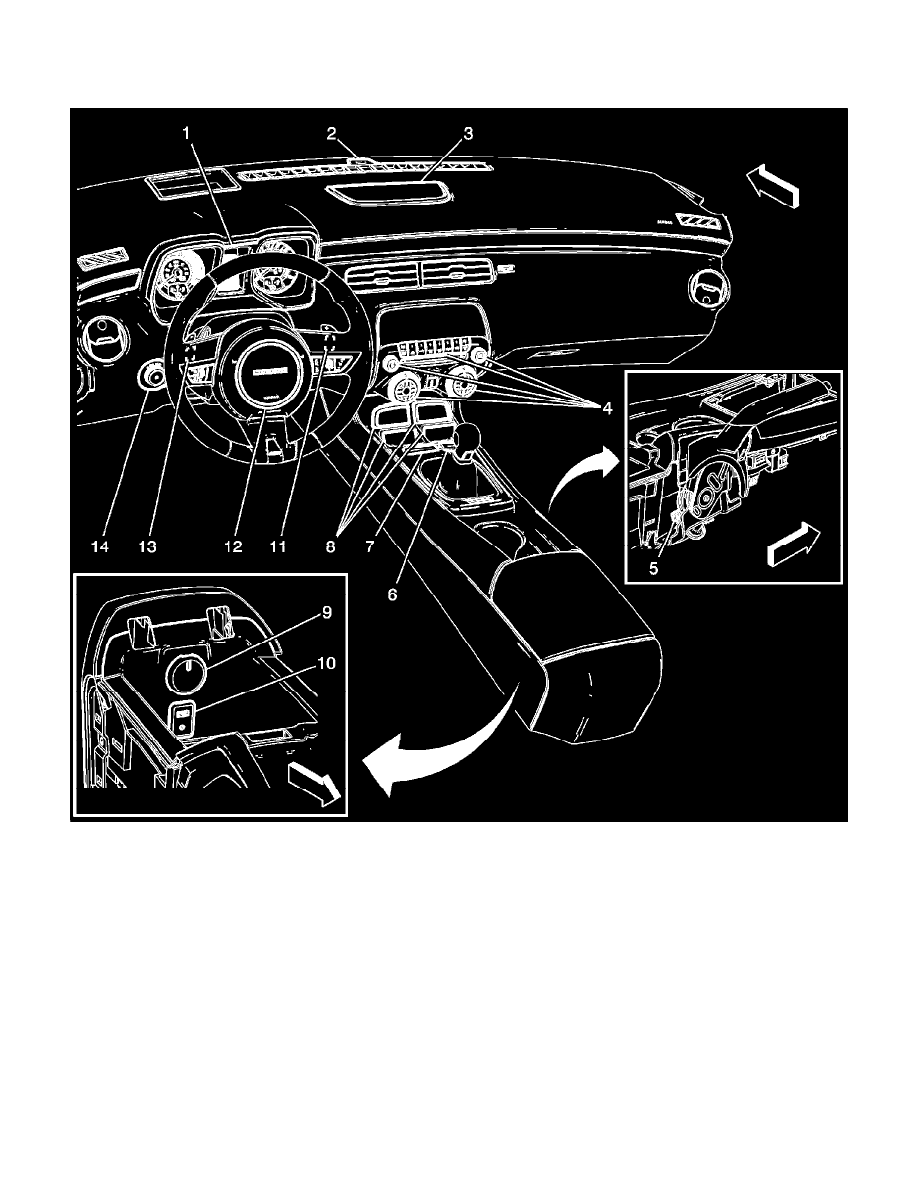

Instrument Panel and Center Console Components
1 - P16 Instrument Cluster
2 - B10 Ambient Light Sensor
3 - P19A Speaker - Center Instrument Panel (UQA)
4 - A20 Radio/HVAC Controls
5 - B80 Park Brake Switch
6 - X80H Accessory Power Receptacle - Center Console
7 - S75 Traction Control Switch
8 - P26 Auxiliary Gauge Module (UMQ)
9 - X80D Accessory Power Receptacle - Center Console Compartment
10 - X83 Auxiliary Audio Input (USR)
11 - S2R Automatic Transmission Manual Shift Switch - Right (MYB/MYC)
12 - F107 Steering Wheel Air Bag
13 - S2L Automatic Transmission Manual Shift Switch - Left (MYB/MYC)
14 - S30 Headlamp Switch
